MCPHydraulic Adapters · Union, Male-Female, ORB-Pipe (NPTF)
6405-10-04

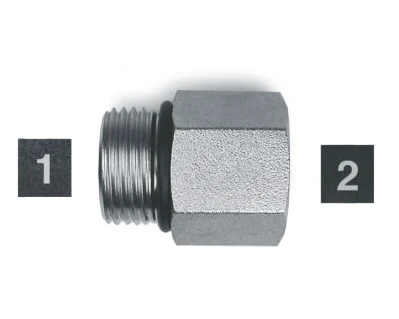

6405-10-04, Hydraulic Adapters, Union, Male-Female, ORB-Pipe (NPTF) 7/8-14 1/4-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.03 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/8-14 |
|---|---|
| Connection 2 thread | 1/4-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.03 |
| 2+ | $3.53 |
| 3+ | $2.69 |
| 4+ | $2.28 |
| 5+ | $2.03 |
| 10+ | $1.51 |
| 25+ | $0.90 |
| 50+ | $0.74 |
| 75+ | $0.61 |
| 100+ | $0.53 |

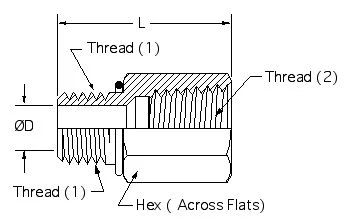

Drawing dimensions
| L | 0.81 |
|---|---|
| D | 0.484 |
| Hex | 1 |
| Thread 1 | 7/8-14 |
| Thread 2 | 1/4-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
