MCPHydraulic Adapters · Union, Male, Bulkhead, ORB
6407-04-04

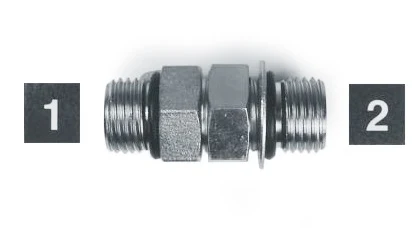

6407-04-04, Hydraulic Adapters, Union, Male, Bulkhead, ORB 7/16-20 7/16-20
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.07 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/16-20 |
|---|---|
| Connection 2 thread | 7/16-20 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.07 |
| 2+ | $3.57 |
| 3+ | $2.74 |
| 4+ | $2.32 |
| 5+ | $2.07 |
| 10+ | $1.55 |
| 25+ | $0.93 |
| 50+ | $0.76 |
| 75+ | $0.64 |
| 100+ | $0.55 |
| 250+ | $0.47 |
| 500+ | $0.36 |

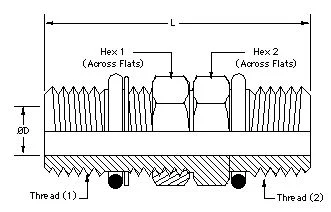

Drawing dimensions
| L | 1.46 |
|---|---|
| D | 0.172 |
| Hex 1 | 9/16 |
| Hex 2 | 9/16 |
| Thread 1 | 7/16-20 |
| Thread 2 | 7/16-20 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
