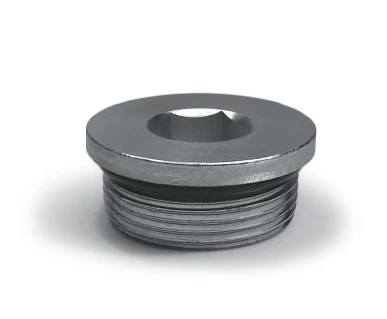

MCPHydraulic Adapters · Plug, Hex Socket, ORB
6409-06
6409-06, Hydraulic Adapters, Plug, Hex Socket, ORB 9/16-18 0.25
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.29 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 9/16-18 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.29 |
| 2+ | $2.79 |
| 3+ | $1.96 |
| 4+ | $1.54 |
| 5+ | $1.29 |
| 10+ | $0.79 |
| 25+ | $0.49 |
| 50+ | $0.39 |
| 100+ | $0.25 |
| 250+ | $0.18 |
| 500+ | $0.15 |
Drawing dimensions
| L | 0.50 |
|---|---|
| Thread | 9/16-18 |
| D | 0.69 |
| Hex | 0.25 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: carbon steel housing, Nitrile (Buna) o-ring.
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
