MCPHydraulic Adapters · Reducer, Male-Female, ORB
6410-16-12
6410-16-12, Hydraulic Adapters, Reducer, Male-Female, ORB 1 5/16-12 1 1/16-12
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.34 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Male thread | 1 5/16-12 |
|---|---|
| Female thread | 1 1/16-12 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.34 |
| 2+ | $3.84 |
| 3+ | $3.01 |
| 4+ | $2.59 |
| 5+ | $2.34 |
| 10+ | $1.81 |
| 25+ | $1.03 |
| 50+ | $0.82 |
| 75+ | $0.70 |
| 100+ | $0.68 |

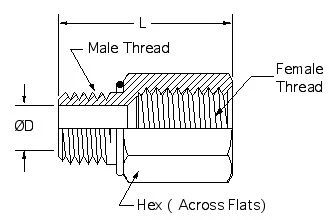

Drawing dimensions
| L | 1.70 |
|---|---|
| Male Thread | 1 5/16-12 |
| Female Thread | 1 1/16-12 |
| Hex | 1.50 |
| D | 0.84 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: carbon steel housing, nitrile (buna) o-ring.
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
