MCPHydraulic Adapters · Elbow, 90°, Male-Female, Swivel, JIC
6500-24-24

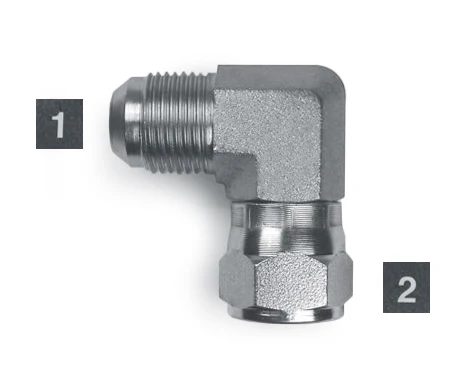

6500-24-24, Hydraulic Adapters, Elbow, 90°, Male-Female, Swivel, JIC 1 7/8-12 1 7/8-12
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$14.23 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1 7/8-12 |
|---|---|
| Connection 2 thread | 1 7/8-12 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $14.23 |
| 2+ | $8.97 |
| 3+ | $8.14 |
| 4+ | $7.10 |
| 5+ | $6.85 |
| 10+ | $4.97 |
| 25+ | $4.29 |
| 50+ | $3.13 |
| 100+ | $2.77 |

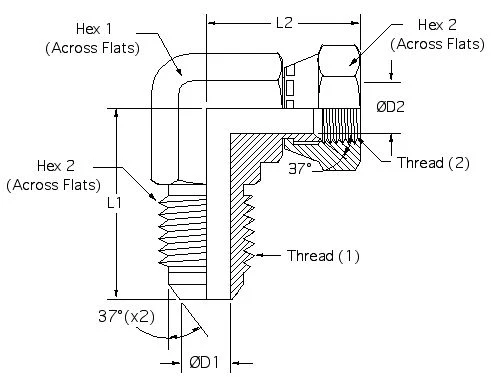

Drawing dimensions
| L1 | 2.33 |
|---|---|
| L2 | 2.59 |
| D1 | 1.312 |
| D2 | 1.312 |
| Hex 1 | 1 7/8 |
| Hex 2 | 2 1/4 |
| Thread 1 | 1 7/8-12 |
| Thread 2 | 1 7/8-12 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
