MCPHydraulic Adapters · Elbow, 90°, Male-Female, Swivel, Pipe (NPTF)-JIC
6501-08-08
6501-08-08, Hydraulic Adapters, Elbow, 90°, Male-Female, Swivel, Pipe (NPTF)-JIC 1/2-14 3/4-16
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$7.04 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1/2-14 |
|---|---|
| Connection 2 thread | 3/4-16 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $7.04 |
| 2+ | $4.54 |
| 3+ | $3.71 |
| 4+ | $3.29 |
| 5+ | $3.01 |
| 10+ | $1.90 |
| 25+ | $1.46 |
| 50+ | $1.06 |
| 75+ | $0.94 |
| 100+ | $0.92 |

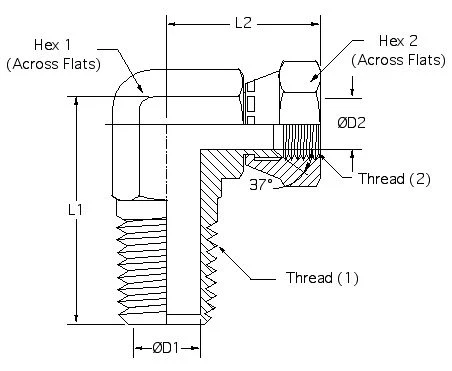

Drawing dimensions
| L1 | 1.47 |
|---|---|
| L2 | 1.48 |
| D1 | 0.531 |
| D2 | 0.391 |
| Hex 1 | 7/8 |
| Hex 2 | 7/8 |
| Thread 1 | 1/2-14 |
| Thread (2) | 3/4-16 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
