MCPHydraulic Adapters · Elbow, 45°, Male-Female, Swivel, JIC
6502-20-20

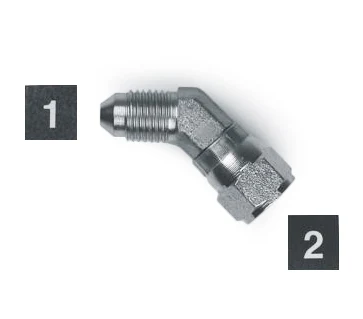

6502-20-20, Hydraulic Adapters, Elbow, 45°, Male-Female, Swivel, JIC 1 5/8-12 1 5/8-12
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.76 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1 5/8-12 |
|---|---|
| Connection 2 thread | 1 5/8-12 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.76 |
| 2+ | $6.26 |
| 3+ | $5.36 |
| 4+ | $4.95 |
| 5+ | $3.59 |
| 10+ | $2.84 |
| 25+ | $1.99 |
| 50+ | $1.74 |
| 100+ | $1.26 |
| 250+ | $1.11 |
| 500+ | $1.03 |

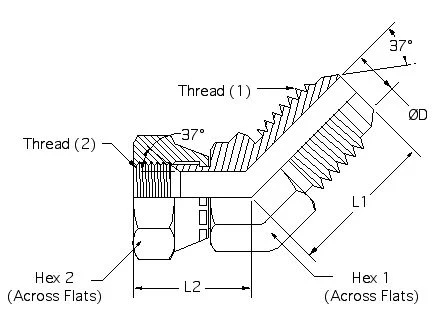

Drawing dimensions
| L1 | 1.59 |
|---|---|
| L2 | 2.01 |
| D | 1.078 |
| Hex 1 | 1 5/8 |
| Hex 2 | 2 |
| Thread 1 | 1 5/8-12 |
| Thread 2 | 1 5/8-12 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
