MCPHydraulic Adapters · Elbow, 90°, Female, Swivel, Pipe (NPTF)-JIC
6503-06-06
6503-06-06, Hydraulic Adapters, Elbow, 90°, Female, Swivel, Pipe (NPTF)-JIC 9/16-18 3/8-18

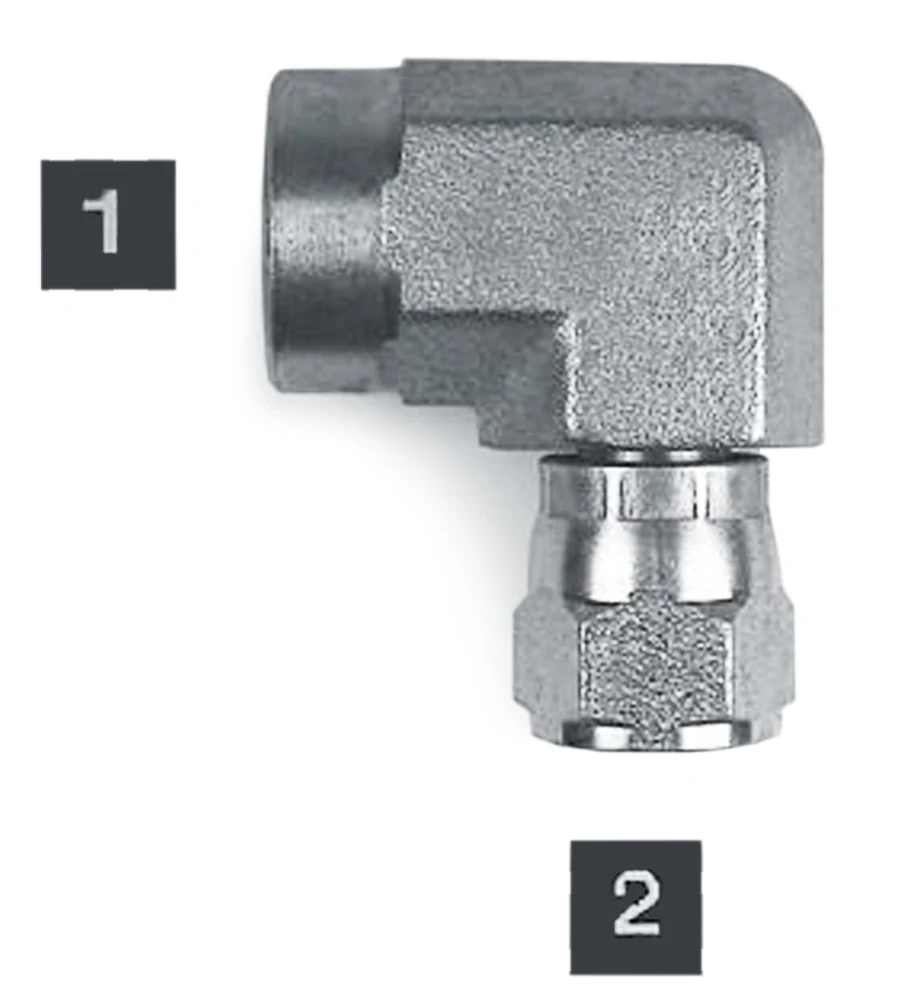

Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.59 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 3/8-18 |
|---|---|
| Connection 2 thread | 9/16-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.59 |
| 2+ | $6.09 |
| 3+ | $5.20 |
| 4+ | $4.78 |
| 5+ | $3.46 |
| 10+ | $2.72 |
| 25+ | $2.12 |
| 50+ | $1.63 |
| 100+ | $1.22 |
| 250+ | $1.07 |

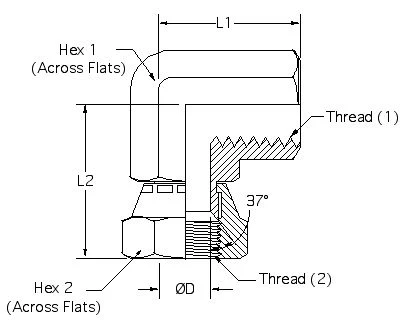

Drawing dimensions
| L1 | 1.02 |
|---|---|
| L2 | 1.41 |
| D | 0.297 |
| Hex 1 | 7/8 |
| Hex 2 | 11/16 |
| Thread 1 | 3/8-18 |
| Thread 2 | 9/16-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
