MCPHydraulic Adapters · Union, Female, Swivel, Pipe (NPTF)-JIC
6506-16-16
6506-16-16, Hydraulic Adapters, Union, Female, Swivel, Pipe (NPTF)-JIC 1-11 1/2 1 5/16-12
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.72 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1-11 1/2 |
|---|---|
| Connection 2 thread | 1 5/16-12 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.72 |
| 2+ | $6.22 |
| 3+ | $5.33 |
| 4+ | $4.91 |
| 5+ | $3.55 |
| 10+ | $2.80 |
| 25+ | $1.95 |
| 50+ | $1.70 |
| 100+ | $1.28 |
| 250+ | $1.11 |
| 500+ | $1.03 |

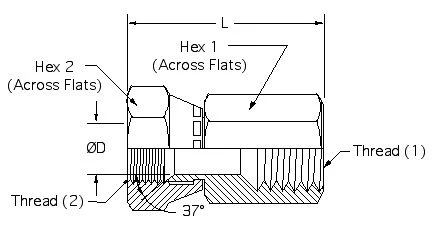

Drawing dimensions
| L | 2.58 |
|---|---|
| D | 0.844 |
| Hex 1 | 1 5/8 |
| Hex 2 | 1 1/2 |
| Thread 1 | 1-11 1/2 |
| Thread 2 | 1 5/16-12 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
