MCPHydraulic Adapters · Tee, Branch, Swivel, M-M-F, JIC
6600-06-06-06
6600-06-06-06, Hydraulic Adapters, Tee, Branch, Swivel, M-M-F, JIC 9/16-18 9/16-18 9/16-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.72 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 9/16-18 |
|---|---|
| Connection 2 thread | 9/16-18 |
| Connection 3 thread | 9/16-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.72 |
| 2+ | $4.22 |
| 3+ | $3.38 |
| 4+ | $2.97 |
| 5+ | $2.72 |
| 10+ | $1.68 |
| 25+ | $1.26 |
| 50+ | $1.02 |
| 75+ | $0.87 |
| 100+ | $0.79 |

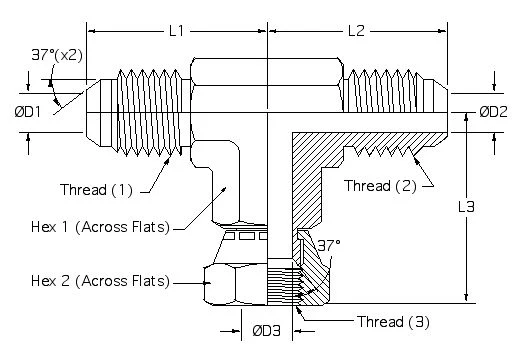

Drawing dimensions
| L1 | 1.06 |
|---|---|
| L3 | 1.25 |
| L2 | 1.06 |
| D1 | 0.297 |
| D2 | 0.297 |
| D3 | 0.297 |
| Hex 1 | 9/16 |
| Hex 2 | 11/16 |
| Thread 1 | 9/16-18 |
| Thread 2 | 9/16-18 |
| Thread 3 | 9/16-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
