MCPHydraulic Adapters · Elbow, 90°, Male, JIC-ORB
6801-05-06

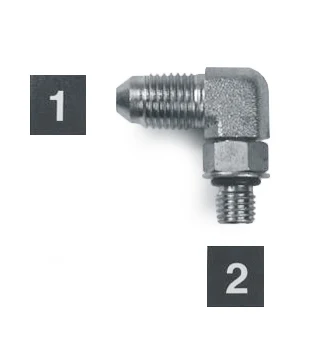

6801-05-06, Hydraulic Adapters, Elbow, 90°, Male, JIC-ORB 1/2-20 9/16-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.21 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1/2-20 |
|---|---|
| Connection 2 thread | 9/16-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.21 |
| 2+ | $3.71 |
| 3+ | $2.87 |
| 4+ | $2.46 |
| 5+ | $2.21 |
| 10+ | $1.69 |
| 25+ | $0.95 |
| 50+ | $0.75 |
| 75+ | $0.63 |
| 100+ | $0.62 |

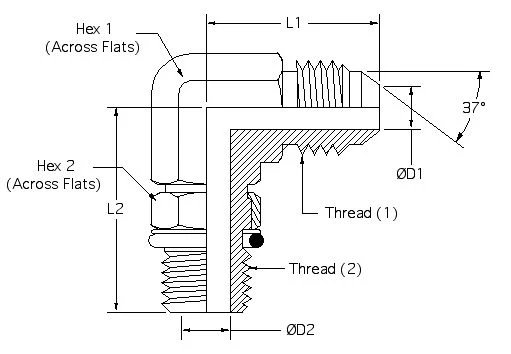

Drawing dimensions
| L1 | 1.05 |
|---|---|
| L2 | 1.25 |
| D1 | 0.234 |
| D2 | 0.297 |
| Hex 1 | 5/8 |
| Hex 2 | 11/16 |
| Thread 1 | 1/2-20 |
| Thread 2 | 9/16-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
