Hydraulic Adapters · Elbow, 90°, Male, Long, JIC-ORB

6801LL-04-04

6801LL-04-04, Hydraulic Adapters, Elbow, 90°, Male, Long, JIC-ORB 7/16-20 7/16-20

Product image
6801LL-04-04 product image
Dimension drawing 1
6801LL-04-04 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$8.27 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Connection 1 thread7/16-20
Connection 2 thread7/16-20

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$8.27
2+$5.77
3+$4.87
4+$4.46
5+$3.24
10+$2.52
25+$1.95
50+$1.50
100+$1.12
250+$0.98

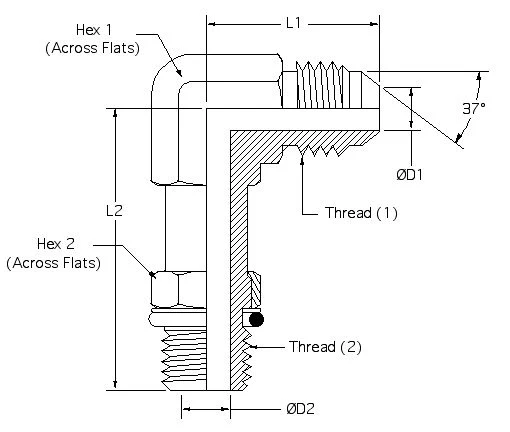

Drawing dimensions

L10.89
L21.73
D10.172
D20.172
Hex 17/16
Hex 29/16
Thread 17/16-20
Thread 27/16-20

Lettered dimensions refer to the drawing for this part.

Product information

Material: low carbon steel Finish: zinc plated
