MCPHydraulic Adapters · Elbow, 45°, Male, JIC-ORB
6802-10-12
6802-10-12, Hydraulic Adapters, Elbow, 45°, Male, JIC-ORB 7/8-14 1 1/16-12
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.96 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/8-14 |
|---|---|
| Connection 2 thread | 1 1/16-12 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.96 |
| 2+ | $3.46 |
| 3+ | $2.63 |
| 4+ | $2.21 |
| 5+ | $1.96 |
| 10+ | $1.45 |
| 25+ | $0.87 |
| 50+ | $0.70 |
| 75+ | $0.60 |
| 100+ | $0.51 |

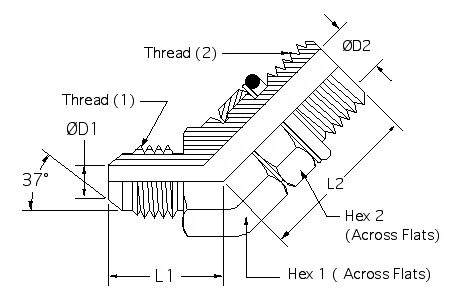

Drawing dimensions
| L1 | 1.16 |
|---|---|
| L2 | 1.73 |
| D1 | 0.484 |
| D2 | 0.609 |
| Hex 1 | 1 1/16 |
| Hex 2 | 1 1/4 |
| Thread 1 | 7/8-14 |
| Thread 2 | 1 1/16-12 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
