MCPHydraulic Adapters · Elbow, 90°, Male-Female, ORB-Pipe (NPTF)
6805-08-06
6805-08-06, Hydraulic Adapters, Elbow, 90°, Male-Female, ORB-Pipe (NPTF) 3/8-18 3/4-16
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.81 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 3/4-16 |
|---|---|
| Connection 2 thread | 3/8-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.81 |
| 2+ | $4.31 |
| 3+ | $3.48 |
| 4+ | $3.06 |
| 5+ | $2.78 |
| 10+ | $1.74 |
| 25+ | $1.32 |
| 50+ | $0.95 |
| 75+ | $0.92 |
| 100+ | $0.83 |

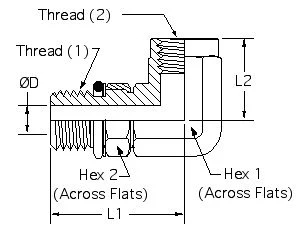

Drawing dimensions
| L1 | 1.50 |
|---|---|
| L2 | 1.03 |
| D | 0.391 |
| Hex 1 | 7/8 |
| Hex 2 | 7/8 |
| Thread 1 | 3/4-16 |
| Thread 2 | 3/8-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
