Hydraulic Adapters · Elbow, 90°, Male-Female, Swivel, Long, ORB-Pipe (NPTF)

6805LL-08-06

6805LL-08-06, Hydraulic Adapters, Elbow, 90°, Male-Female, Swivel, Long, ORB-Pipe (NPTF) 3/8-18 3/4-16

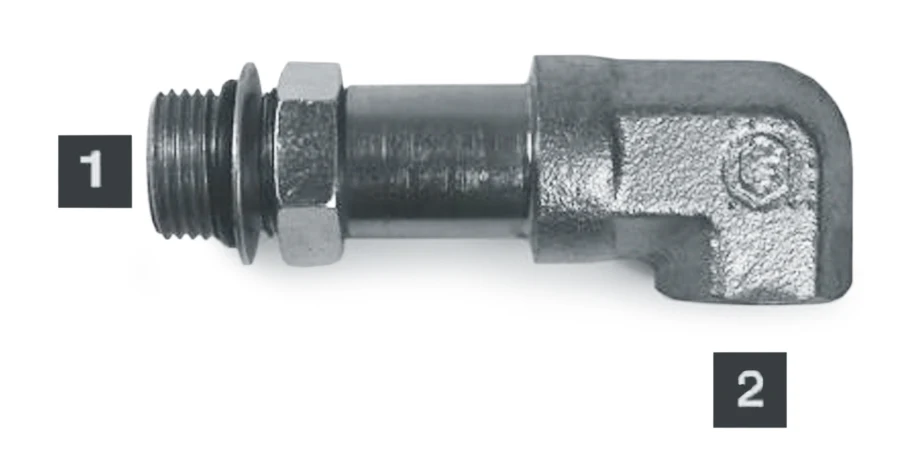

Product image
6805LL-08-06 product image

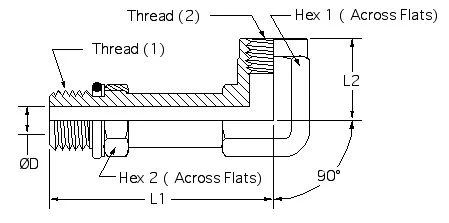

Dimension drawing 1
6805LL-08-06 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$10.93 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Connection 1 thread3/4-16
Connection 2 thread3/8-18

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$10.93
2+$8.33
3+$5.72
4+$5.30
5+$5.05
10+$4.15
25+$2.97
50+$2.62
100+$1.98

Drawing dimensions

L12.92
L20.66
D0.391
Hex 17/8
Hex 27/8
Thread 13/4-16
Thread 23/8-18

Lettered dimensions refer to the drawing for this part.

Product information

Material: low carbon steel Finish: zinc plated
