MCPHydraulic Adapters · Elbow, 90°, Male, ORB-Pipe (NPTF)
6806-06-06

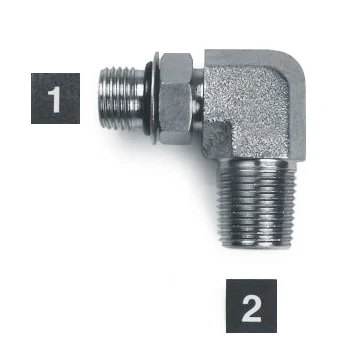

6806-06-06, Hydraulic Adapters, Elbow, 90°, Male, ORB-Pipe (NPTF) 9/16-18 3/8-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.79 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 9/16-18 |
|---|---|
| Connection 2 thread | 3/8-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.79 |
| 2+ | $4.29 |
| 3+ | $3.46 |
| 4+ | $3.04 |
| 5+ | $2.79 |
| 10+ | $1.73 |
| 25+ | $1.31 |
| 50+ | $1.06 |
| 75+ | $0.91 |
| 100+ | $0.82 |

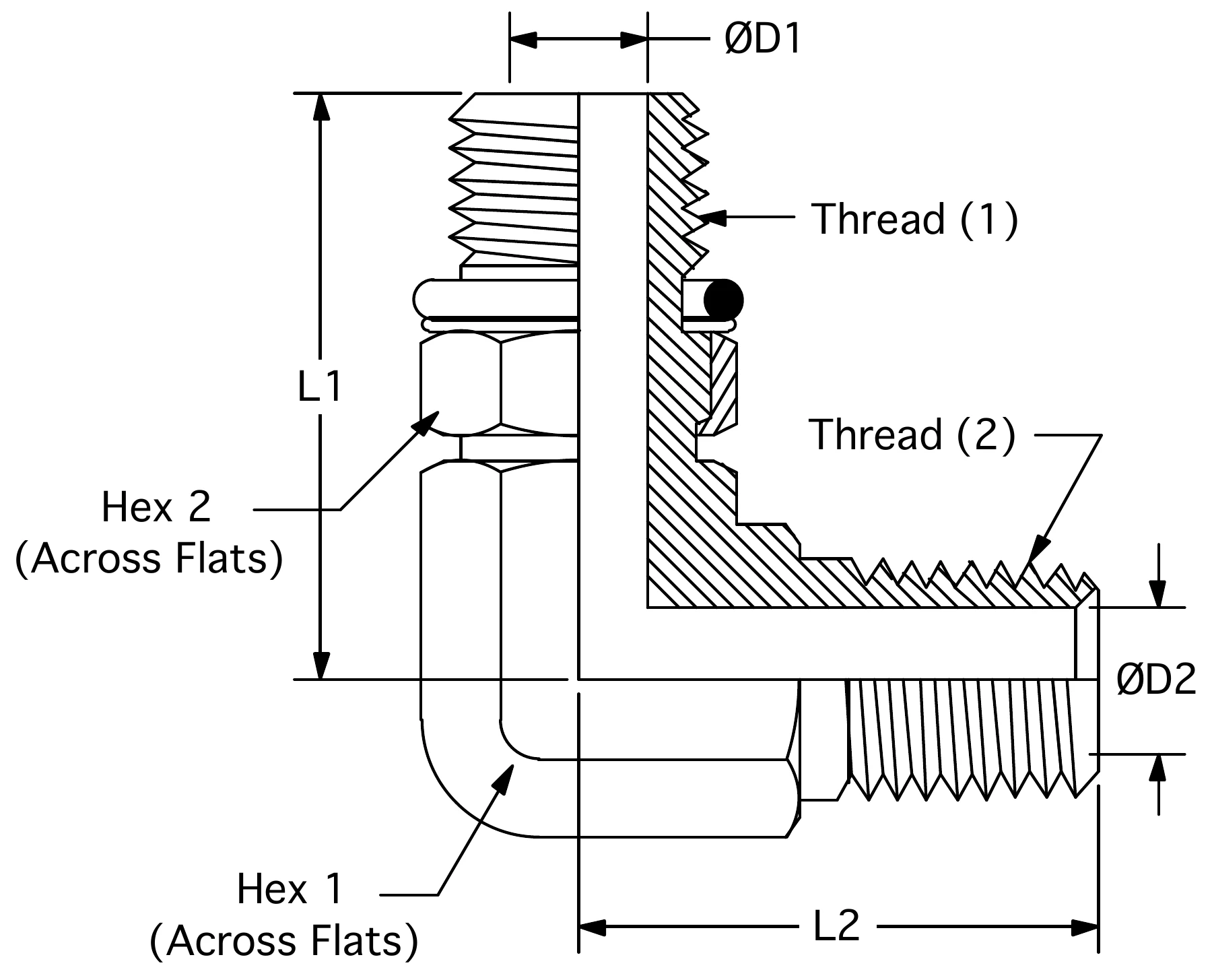

Drawing dimensions
| L1 | 1.32 |
|---|---|
| L2 | 1.21 |
| D1 | 0.297 |
| D2 | 0.406 |
| Hex 1 | 3/4 |
| Hex 2 | 11/16 |
| Thread 1 | 9/16-18 |
| Thread 2 | 3/8-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
