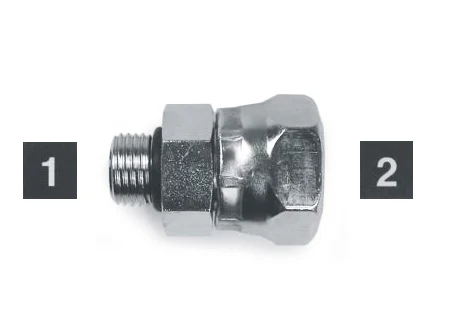

MCPHydraulic Adapters · Union, Male-Female, Swivel, ORB-Pipe (NPSM)
6900-08-12
6900-08-12, Hydraulic Adapters, Union, Male-Female, Swivel, ORB-Pipe (NPSM) 3/4-14 3/4-16
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.39 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 3/4-16 |
|---|---|
| Connection 2 thread | 3/4-14 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.39 |
| 2+ | $5.89 |
| 3+ | $5.00 |
| 4+ | $4.58 |
| 5+ | $3.32 |
| 10+ | $2.59 |
| 25+ | $2.01 |
| 50+ | $1.55 |
| 100+ | $1.16 |
| 250+ | $1.02 |

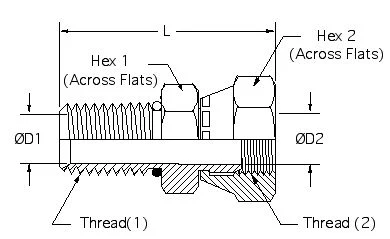

Drawing dimensions
| L | 1.81 |
|---|---|
| D1 | 0.391 |
| D2 | 0.640 |
| Hex 1 | 1 |
| Hex 2 | 1 1/4 |
| Thread 1 | 3/4-16 |
| Thread 2 | 3/4-14 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
