MCPHydraulic Adapters · Union, Male-Female, Swivel, ORB-Pipe (NPSM)
6900-12-08
6900-12-08, Hydraulic Adapters, Union, Male-Female, Swivel, ORB-Pipe (NPSM) 1/2-14 1 1/16-12
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.15 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1 1/16-12 |
|---|---|
| Connection 2 thread | 1/2-14 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.15 |
| 2+ | $3.65 |
| 3+ | $2.82 |
| 4+ | $2.40 |
| 5+ | $2.15 |
| 10+ | $1.64 |
| 25+ | $0.99 |
| 50+ | $0.82 |
| 75+ | $0.69 |
| 100+ | $0.59 |

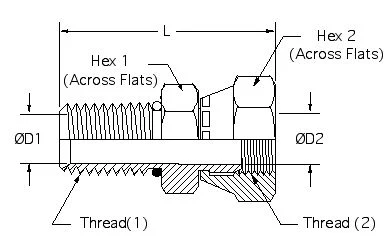

Drawing dimensions
| L | 1.72 |
|---|---|
| D1 | 0.609 |
| D2 | 0.469 |
| Hex 1 | 1 1/4 |
| Hex 2 | 1 |
| Thread 1 | 1 1/16-12 |
| Thread 2 | 1/2-14 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
