MCPHydraulic Adapters · Elbow, 90°, Male-Female, Swivel, ORB-Pipe (NPSM)
6901-06-06
6901-06-06, Hydraulic Adapters, Elbow, 90°, Male-Female, Swivel, ORB-Pipe (NPSM) 9/16-18 3/8-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.17 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 9/16-18 |
|---|---|
| Connection 2 thread | 3/8-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.17 |
| 2+ | $3.67 |
| 3+ | $2.83 |
| 4+ | $2.42 |
| 5+ | $2.17 |
| 10+ | $1.65 |
| 25+ | $1.00 |
| 50+ | $0.83 |
| 75+ | $0.69 |
| 100+ | $0.60 |
| 250+ | $0.52 |
| 500+ | $0.40 |

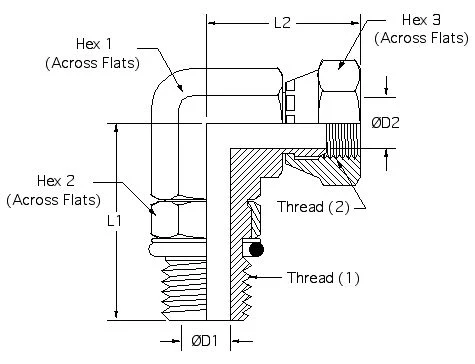

Drawing dimensions
| L1 | 1.30 |
|---|---|
| L2 | 1.35 |
| D1 | 0.297 |
| D2 | 0.339 |
| Hex 1 | 9/16 |
| Hex 2 | 11/16 |
| Hex 3 | 7/8 |
| Thread 1 | 9/16-18 |
| Thread 2 | 3/8-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
