MCPBearings, Spherical Rod End · Female
APF-4
APF-4, Bearings, Spherical Rod End, Female 1/4-28 RH Aluminum Housing, Nylon Race

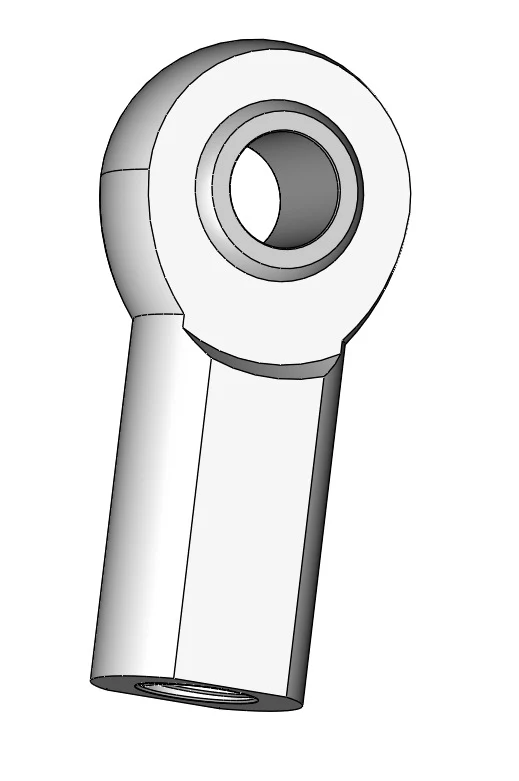

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$20.39 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 RH |
|---|---|
| Housing construction | Aluminum |
| Race material | Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $20.39 |
| 2+ | $16.39 |
| 3+ | $13.68 |
| 4+ | $11.76 |
| 5+ | $11.51 |
| 10+ | $10.07 |
| 25+ | $7.52 |
| 50+ | $6.67 |
| 100+ | $6.05 |
| 150+ | $5.28 |
| 200+ | $5.28 |

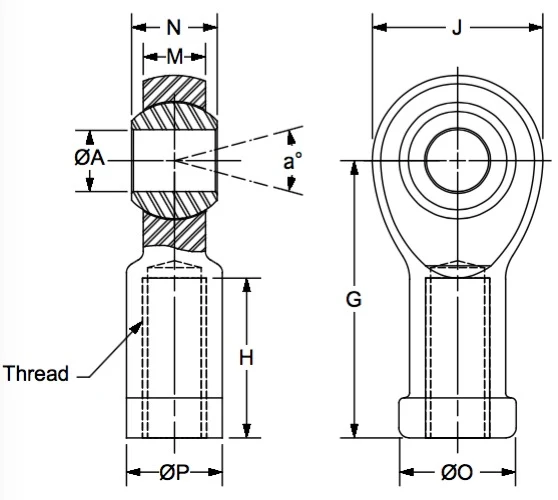

Drawing dimensions
| Threads | 1/4-28 RH |
|---|---|
| Anodized | Red |
| A | .250 |
| G | 1.312 |
| H | .750 |
| J | .750 |
| M | .281 |
| N | .375 |
| J | .469 |
| P | .375 |
| a° | 16 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: nylon
Ball: heat treated, hard chrome plated bearing steel
Finish: anodized red
Housing: aluminum
