MCPBearings, Spherical Rod End · Female
APF-8

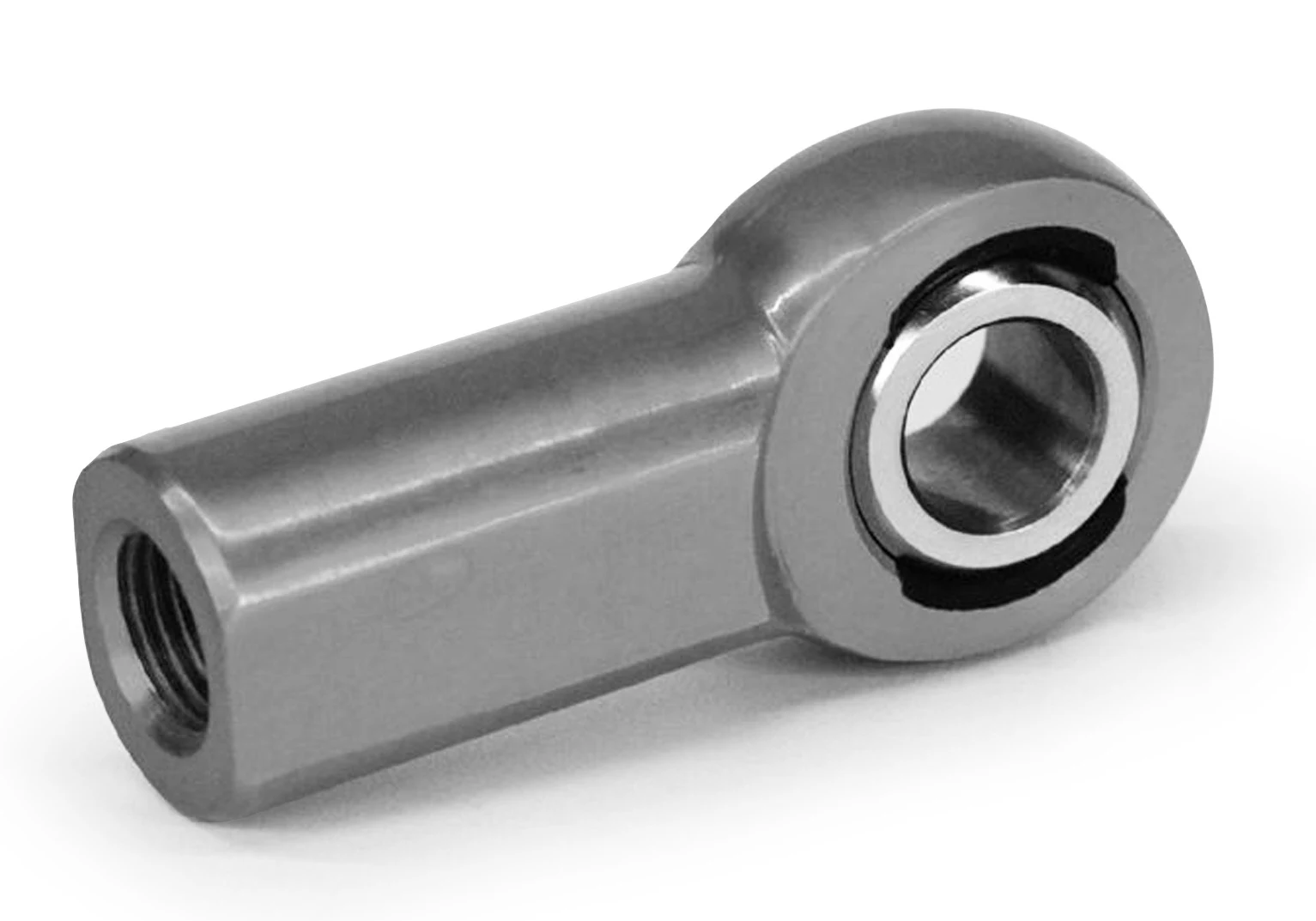

APF-8, Bearings, Spherical Rod End, Female 1/2-20 RH Aluminum Housing, Nylon Race
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$32.10 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/2-20 RH |
|---|---|
| Housing construction | Aluminum |
| Race material | Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $32.10 |
| 2+ | $25.94 |
| 3+ | $22.17 |
| 4+ | $19.93 |
| 5+ | $19.68 |
| 10+ | $14.78 |
| 25+ | $13.02 |
| 50+ | $11.82 |
| 75+ | $10.32 |
| 100+ | $10.31 |
| 125+ | $10.30 |
| 150+ | $8.82 |
| 200+ | $8.81 |
| 300+ | $8.80 |

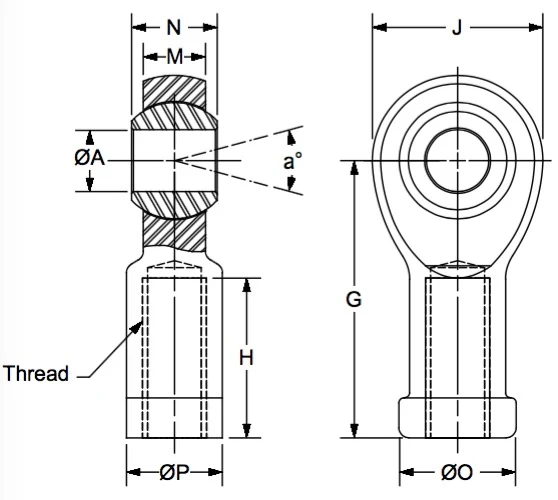

Drawing dimensions
| Threads | 1/2-20 RH |
|---|---|
| Anodized | Red |
| A | .500 |
| G | 2.125 |
| H | 1.187 |
| J | 1.312 |
| M | .500 |
| N | .625 |
| J | .875 |
| P | .750 |
| a° | 12 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: nylon
Ball: heat treated, hard chrome plated bearing steel
Finish: anodized red
Housing: aluminum
