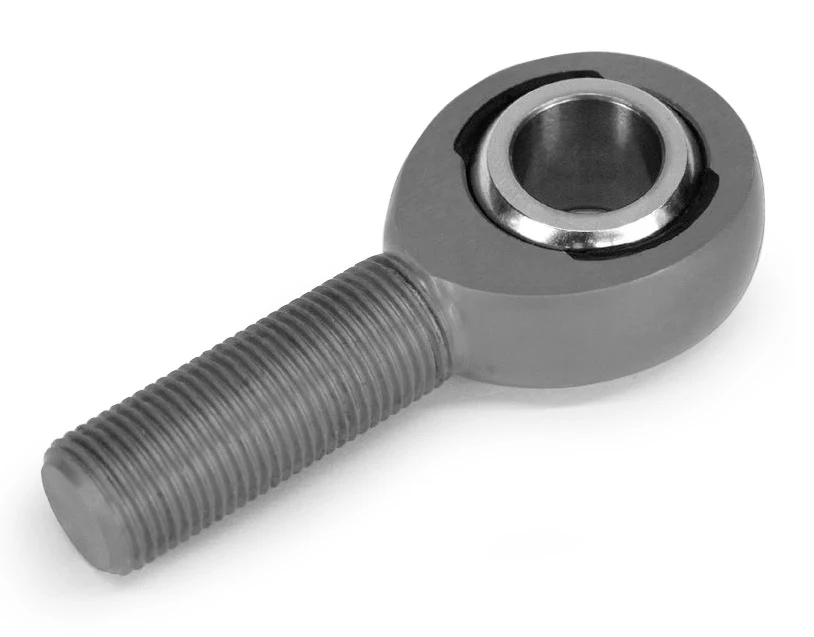

APML-4, Bearings, Spherical Rod End, Male 1/4-28 LH Aluminum Housing, Slotted Nylon Race 1.562 Bore
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.03 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 LH |
|---|---|
| Bore diameter | 1.562 |
| Housing construction | Aluminum |
| Race material | Slotted Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.03 |
| 2+ | $14.26 |
| 3+ | $13.43 |
| 4+ | $11.42 |
| 5+ | $9.90 |
| 10+ | $8.60 |
| 25+ | $6.40 |
| 50+ | $5.66 |
| 100+ | $5.29 |

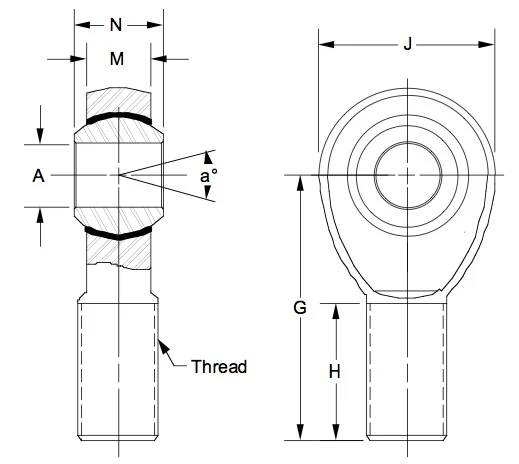

Drawing dimensions
| Threads | 1/4-28 LH |
|---|---|
| Anodized | Red |
| A | 0.2500 |
| G | 1.562 |
| H | 1.000 |
| J | 0.750 |
| M | 0.281 |
| N | 0.375 |
| a° | 16 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: nylon
Ball: heat treated, hard chrome plated bearing steel
Finish: anodized red
Housing: aluminum
