MCPBall Joints · Female
AS3-4
AS3-4, Ball Joints, Female 10-32 RH Housing 1/4-28 RH Stud Tensioned Ball Stud
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.95 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 10-32 RH |
|---|---|
| Stud thread | 1/4-28 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.95 |
| 2+ | $15.09 |
| 3+ | $12.56 |
| 4+ | $12.14 |
| 5+ | $10.53 |
| 25+ | $6.84 |
| 75+ | $5.69 |
| 150+ | $4.81 |

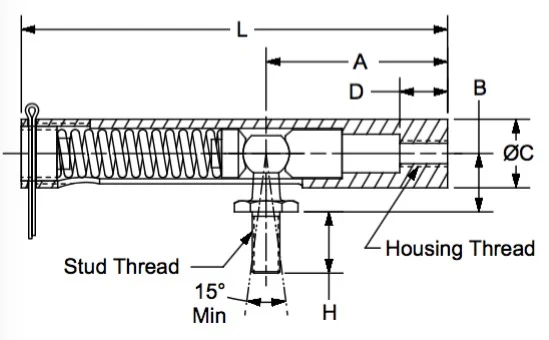

Drawing dimensions
| Housing Thread | 10-32 RH |
|---|---|
| Stud Thread | 1/4-28 Stud |
| A | 1.657 |
| B | 0.531 |
| C | 0.625 |
| D | 0.438 |
| H | 0.563 |
| L | 3.898 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: AS-series ball joints feature a spring-loaded ball stud. This special feature reduces backlash on the ball stud and allows the user to adjust somewhat the location of the ball stud.
Constructions: Low carbon steel, plated with a yellow dichromate finish. Per SAE J490 Type AL.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More ball joints
Compare specifications and drawings to select the right part.
