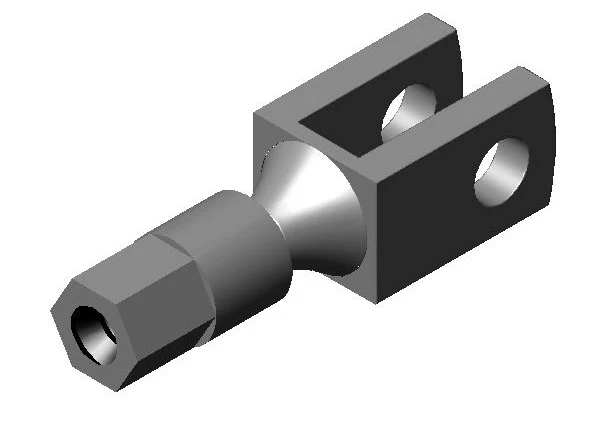

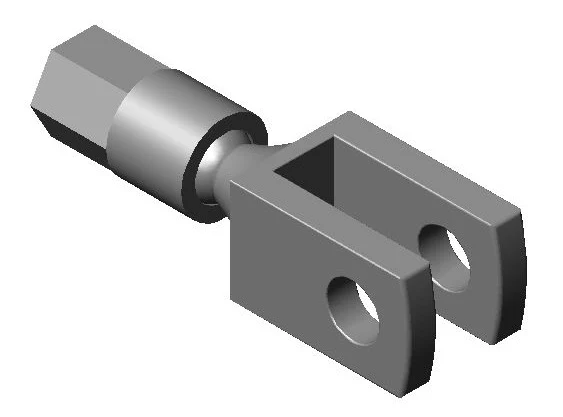

ATC-250, Clevis and Yoke Ends, Female 1/4-28 RH 0.250 Pin Holes 1/4 Short Body Zinc Silver Plating, Turned Housing Articulated Turnbuckle Design

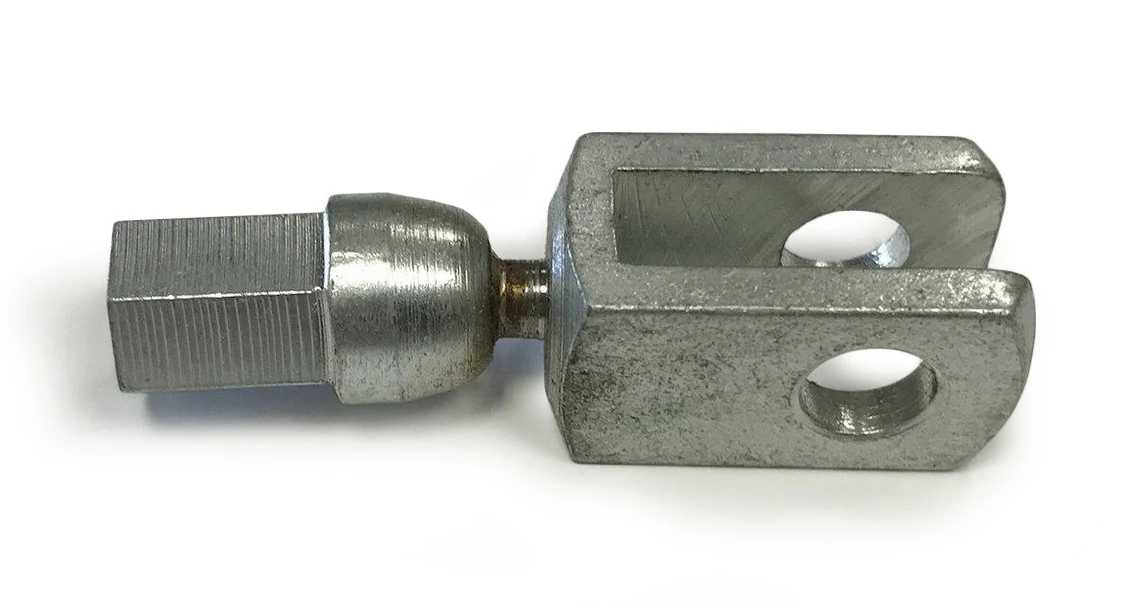

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.20 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.20 |
| 2+ | $5.70 |
| 3+ | $4.81 |
| 4+ | $4.39 |
| 6+ | $3.02 |
| 10+ | $2.47 |
| 20+ | $1.95 |
| 30+ | $1.66 |
| 50+ | $1.46 |
| 100+ | $1.09 |
| 200+ | $0.96 |
| 300+ | $0.95 |
| 400+ | $0.95 |
| 600+ | $0.89 |
| 1,200+ | $0.76 |

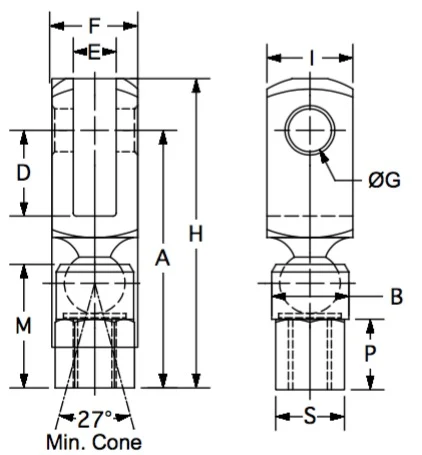

Drawing dimensions
| Threads | 1/4-28 RH |
|---|---|
| A | 2.000 |
| B | 0.438 |
| D | 0.472 |
| E | 0.281 |
| F | 0.625 |
| G | 0.250 |
| H | 2.210 |
| I | 0.500 |
| M | 0.975 |
| P | 0.500 |
| S | 0.375 |
Lettered dimensions refer to the drawing for this part.
Product information
Finish: Plated Zinc Clear
Material: mild steel
Description: Articulated Clevis Design. Enables misalignment capabilities with a clevis design. The spinning barrel eliminate the need for left hand threads, and allows adjustment after installation without removing the clevis pins or clevis spring pins. Great product for direct line or end line pull linkage applications such as shift levers on hydraulic system control valves.
Kits/Assemblies: Midwest Control Products Corp manufactures complete rigid (rod and tube based) control linkages, as well as push-pull cable controls.
Online Video: https://www.youtube.com/watch?v=85jDSEm9dsg
