MCPBall Joints · Male
AXM-9-7Z
AXM-9-7Z, Ball Joints, Male 9/16-18 RH Housing 7/16-20 RH Stud Automotive Style
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$59.22 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 9/16-18 RH |
|---|---|
| Stud thread | 7/16-20 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $59.22 |
| 2+ | $51.88 |
| 3+ | $39.44 |
| 4+ | $39.02 |
| 5+ | $38.77 |
| 10+ | $34.40 |
| 225+ | $22.87 |

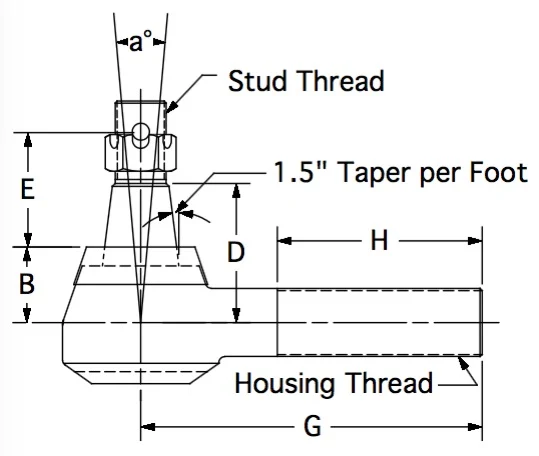

Drawing dimensions
| Housing Threads | 9/16-18 RH |
|---|---|
| Stud Threads | 7/16-20 RH |
| a° | 32 |
| B | 1.050 |
| D | 1.300 |
| E | 0.850 |
| G | 0.686 |
| H | 2.750 |
| J | 1.800 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel forged housing
Application: utilized in heavy duty applications
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
