MCPThreaded Adaptors · Bulk
BANL-16-12-1-B

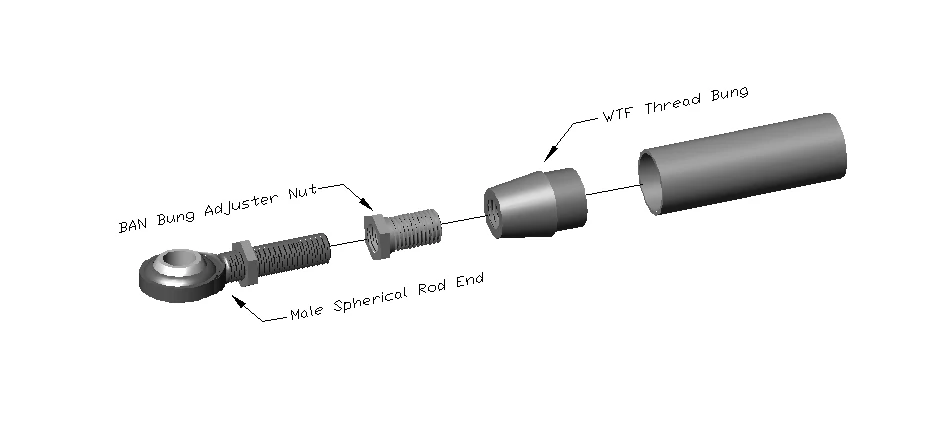

BANL-16-12-1-B, Threaded Adaptors, Bulk 1-12 RH Male Threads 3/4-16 LH Female Threads 2.750 Overall Length Bung Adjuster Nuts
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$30.45 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| External thread | 1-12 RH |
|---|---|
| Internal thread | 3/4-16 LH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $30.45 |
| 2+ | $24.52 |
| 3+ | $20.93 |
| 4+ | $18.80 |
| 5+ | $18.55 |
| 10+ | $13.92 |
| 30+ | $12.21 |
| 60+ | $11.09 |
| 120+ | $9.68 |
| 360+ | $8.27 |

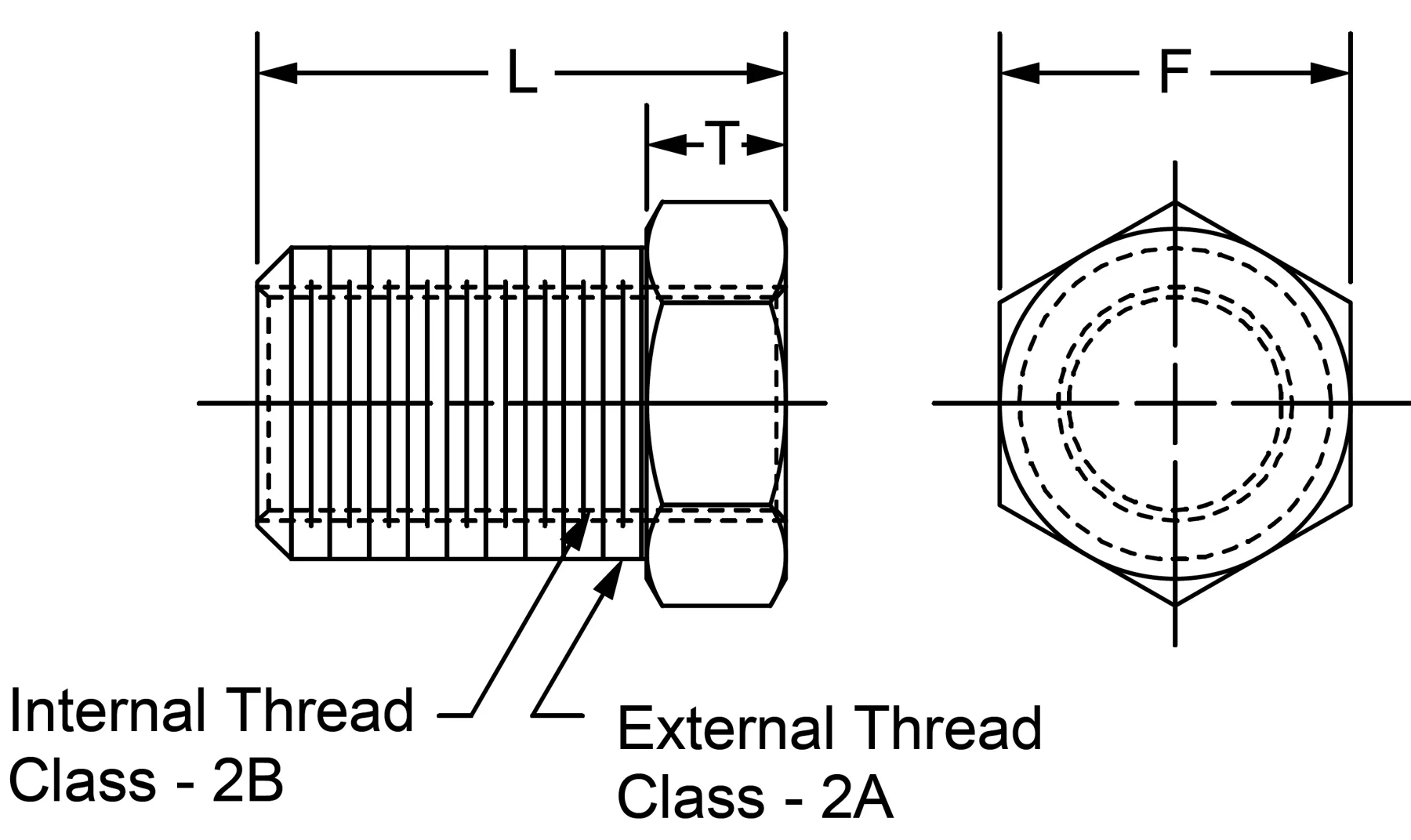

Drawing dimensions
| Internal Threads | 3/4-16 LH |
|---|---|
| External Threads | 1-12 RH |
| F | 1.125 |
| L | 2.750 |
| T | 0.422 |
Lettered dimensions refer to the drawing for this part.
