MCPThreaded Adaptors · Bulk
BANL-16-12-A

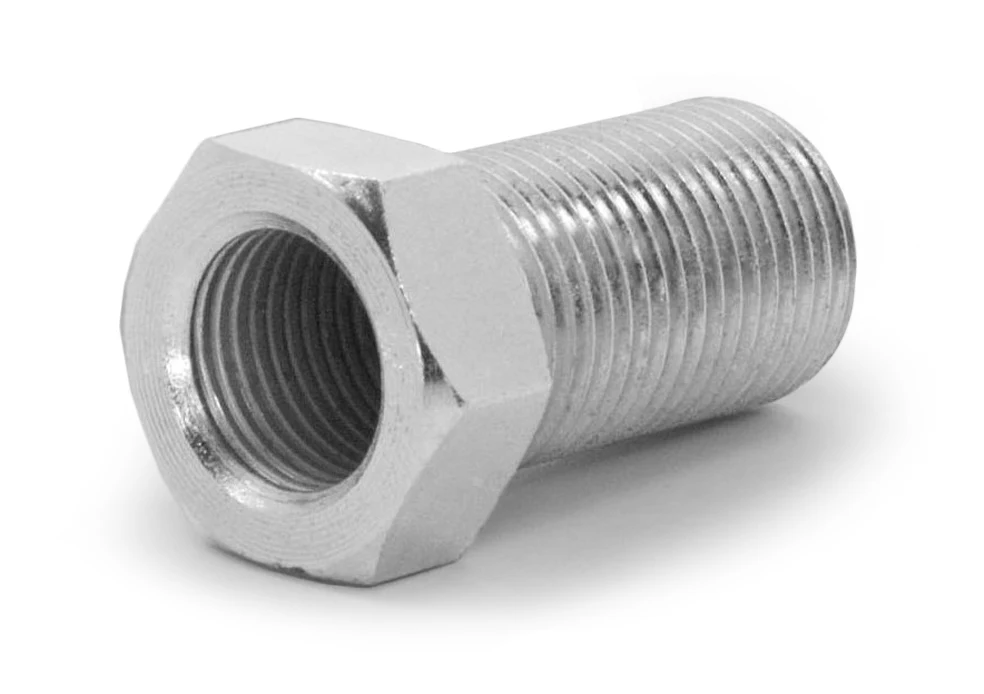

BANL-16-12-A, Threaded Adaptors, Bulk 1-12 LH Male Threads 3/4-16 LH Female Threads 1.750 Overall Length Bung Adjuster Nuts
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$12.60 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| External thread | 1-12 LH |
|---|---|
| Internal thread | 3/4-16 LH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $12.60 |
| 2+ | $7.70 |
| 3+ | $6.87 |
| 4+ | $5.94 |
| 5+ | $5.69 |
| 10+ | $4.56 |
| 30+ | $3.41 |
| 60+ | $2.56 |
| 120+ | $2.27 |
| 360+ | $2.05 |

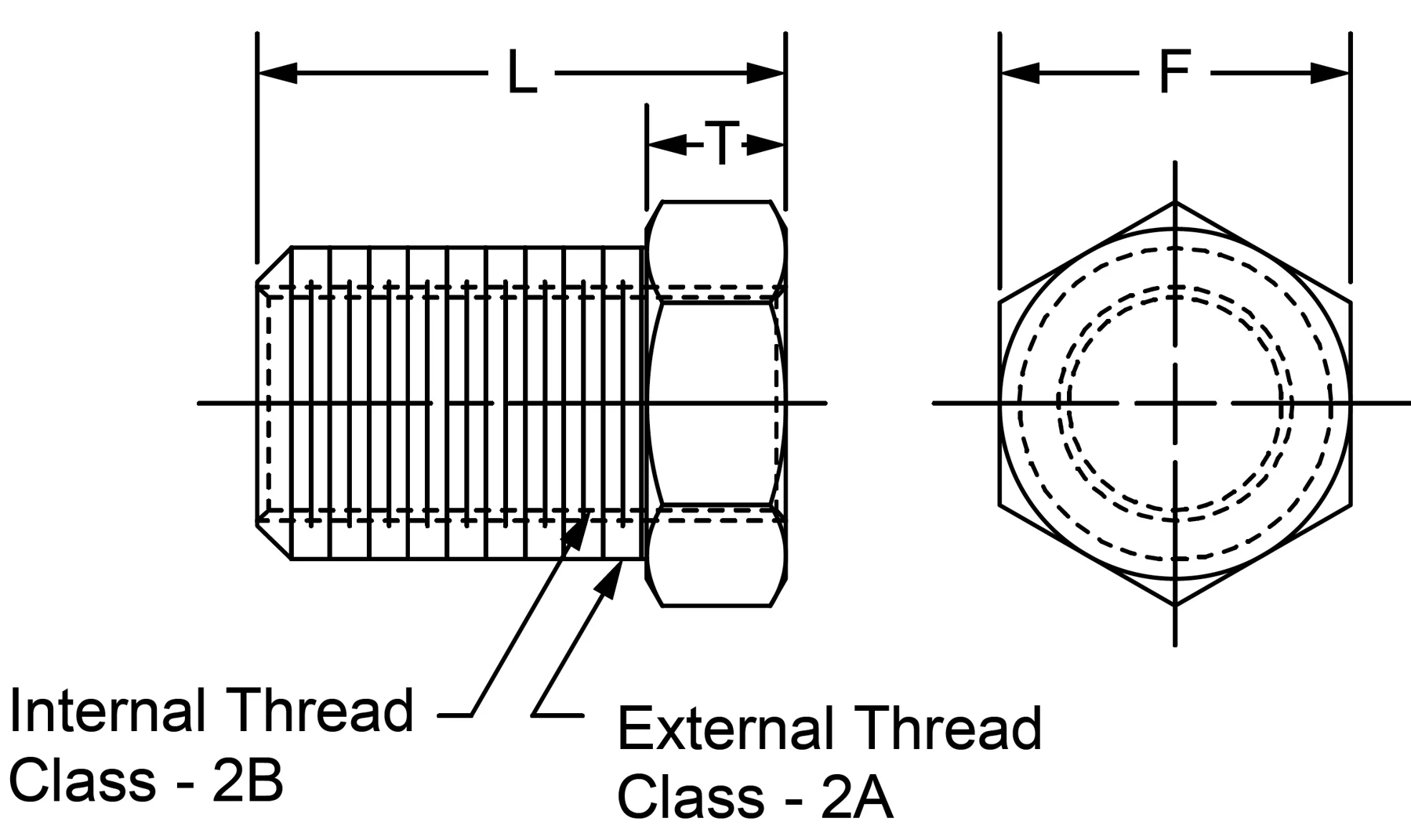

Drawing dimensions
| Internal Threads | 3/4-16 LH |
|---|---|
| External Threads | 1-12 LH |
| F | 1.125 |
| L | 1.750 |
| T | 0.422 |
Lettered dimensions refer to the drawing for this part.
Product information

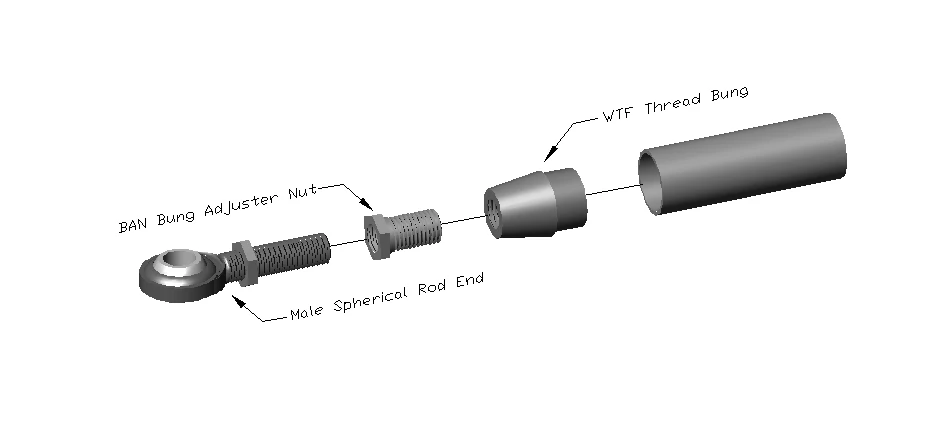

Application: Bung Adjusters are used to adjust male spherical rod ends after assembly into threaded tubes. When the threads are RH/LH, the Bung Adjuster nut also acts as a turnbuckle. For the Bung Adjusters with LH/LH threads, the Adjuster acts as a means of down sizing the threads.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More threaded adaptors
Compare specifications and drawings to select the right part.
