MCPBall Studs · Non-Threaded
BBS-10
BBS-10, Ball Studs, Non-Threaded 10.0 mm Stud Diameter 6.0 mm Stem Length
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.95 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.95 |
| 2+ | $3.45 |
| 3+ | $2.62 |
| 4+ | $2.20 |
| 5+ | $1.95 |
| 10+ | $1.43 |
| 25+ | $0.85 |
| 50+ | $0.68 |
| 100+ | $0.49 |
| 250+ | $0.42 |
| 500+ | $0.32 |
| 1,000+ | $0.29 |

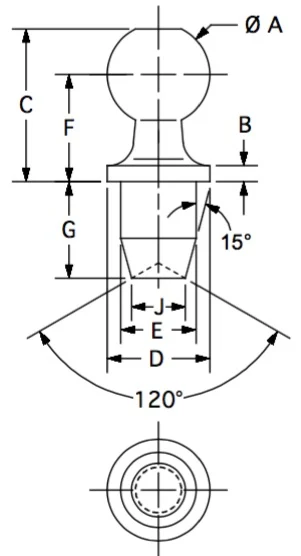

Drawing dimensions
| A | 16.0 |
|---|---|
| B | 2.7 |
| C | 23.0 |
| D | 16.0 |
| E | 10.0 |
| F | 16.0 |
| G | 6.0 |
| J | 8.0 |
Lettered dimensions refer to the drawing for this part.
Product information
Series: MCP offers BBS ball studs for applications where the customer desires the ball stud as a separate component for such applications as gas springs, cable linkages, and awkward to assemble linkages.
Construction: zinc plated, low carbon steel
Specials: specials are available in any volume.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
