MCPFasteners · Washers
BLW-40
BLW-40 , Fasteners, Washers 5/8 nominal size 0.652 Bore 0.046 Thick 1.058 Diameter Zinc Plated

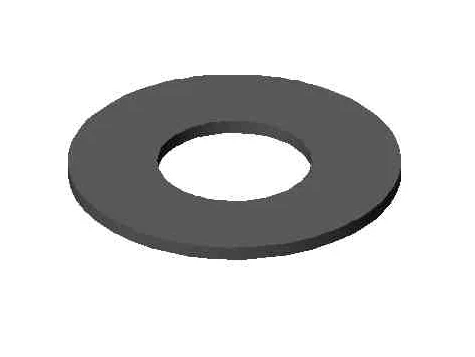

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.62 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 5/8 |
|---|---|
| Finish / plating | Zinc Plated |
| Bore diameter | 0.652 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.62 |
| 2+ | $3.12 |
| 3+ | $2.29 |
| 4+ | $1.87 |
| 5+ | $1.62 |
| 10+ | $1.12 |
| 25+ | $0.63 |
| 50+ | $0.49 |
| 100+ | $0.38 |
| 150+ | $0.32 |
| 300+ | $0.29 |
| 600+ | $0.21 |
| 900+ | $0.21 |
| 1,200+ | $0.18 |
| 2,400+ | $0.18 |
| 4,800+ | $0.17 |

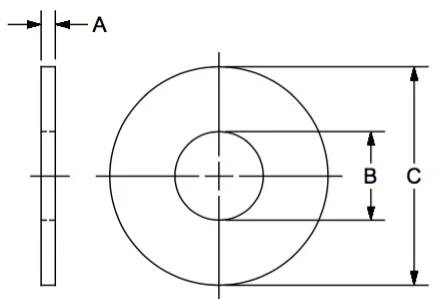

Drawing dimensions
| Nominal | 5/8 |
|---|---|
| A | 0.046 |
| B | 0.652 |
| C | 1.058 |
| Finish | Zinc Plated |
| Comments | Lock Washer |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
