MCPBall Studs · Threaded
BS250F
BS250F, Ball Studs, Threaded 1/4-28 RH 0.562 Stem Length
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$12.11 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $12.11 |
| 2+ | $9.49 |
| 3+ | $6.53 |
| 4+ | $6.11 |
| 5+ | $5.39 |
| 10+ | $4.29 |
| 30+ | $3.19 |
| 50+ | $2.41 |
| 100+ | $2.12 |
| 200+ | $2.10 |
| 300+ | $1.92 |
| 600+ | $1.67 |

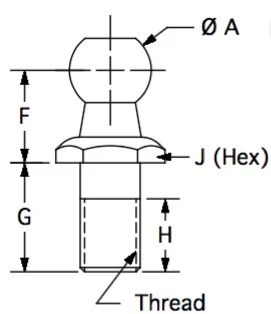

Drawing dimensions
| Threads | 1/4-28 RH |
|---|---|
| A | 0.251 |
| F | 0.406 |
| G | 0.562 |
| H | 0.485 |
| J | 0.500 |
Lettered dimensions refer to the drawing for this part.
Product information
Series: MCP offers ball studs for ball joint and gas spring applications.
Construction: zinc plated, low carbon steel, heat treated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More ball studs
Compare specifications and drawings to select the right part.
