Turnbuckles · 1/4-28 LH and 10-32 RH Threads

BSA-2.50-3R-4L

BSA-2.50-3R-4L, Turnbuckles, 1/4-28 LH and 10-32 RH Threads 2.50 Overall Length Black Anodized Aluminum

Product image
BSA-2.50-3R-4L product image

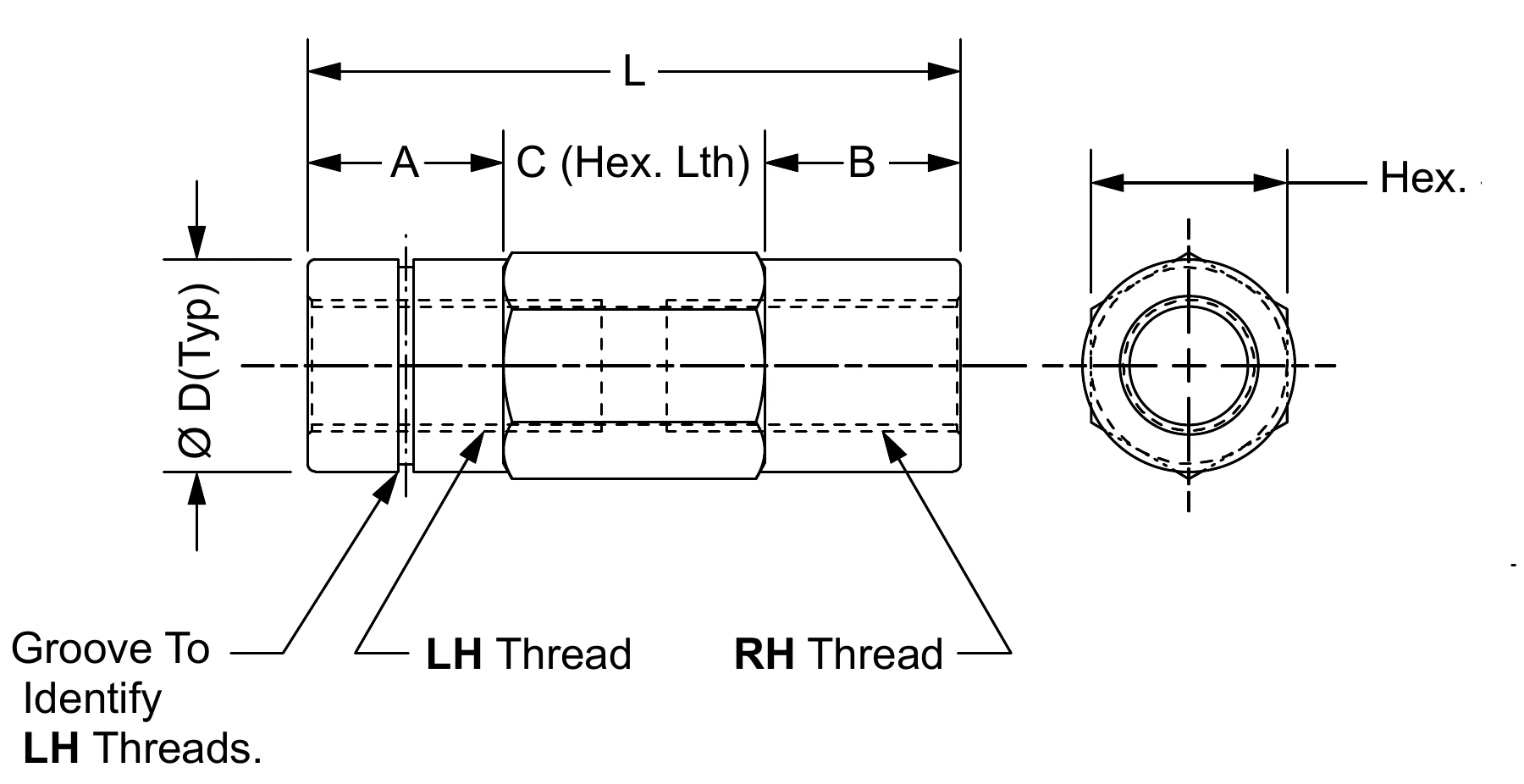

Dimension drawing 1
BSA-2.50-3R-4L dimension drawing 1
Additional photos

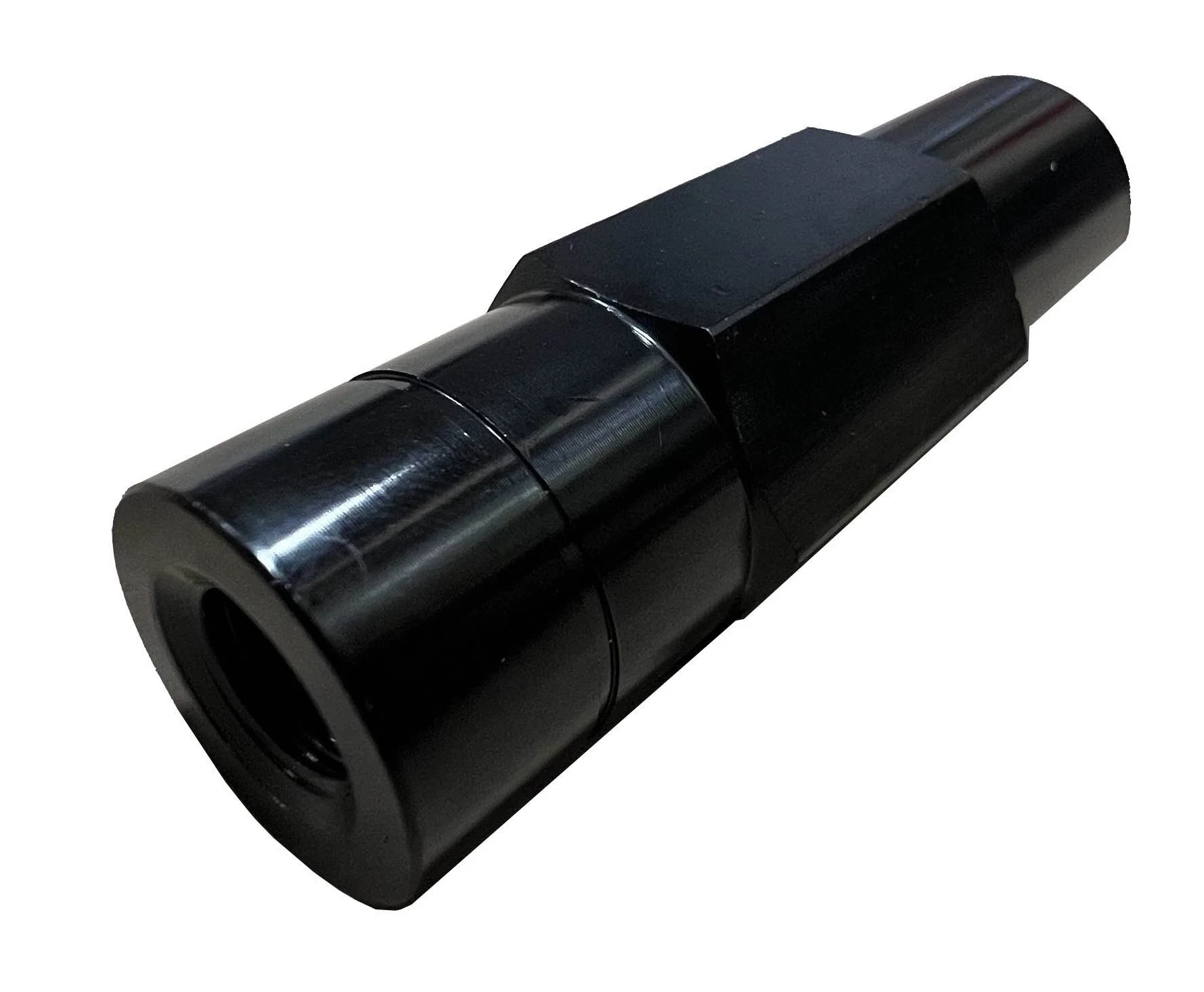

Additional product photo
BSA-2.50-3R-4L additional product photo

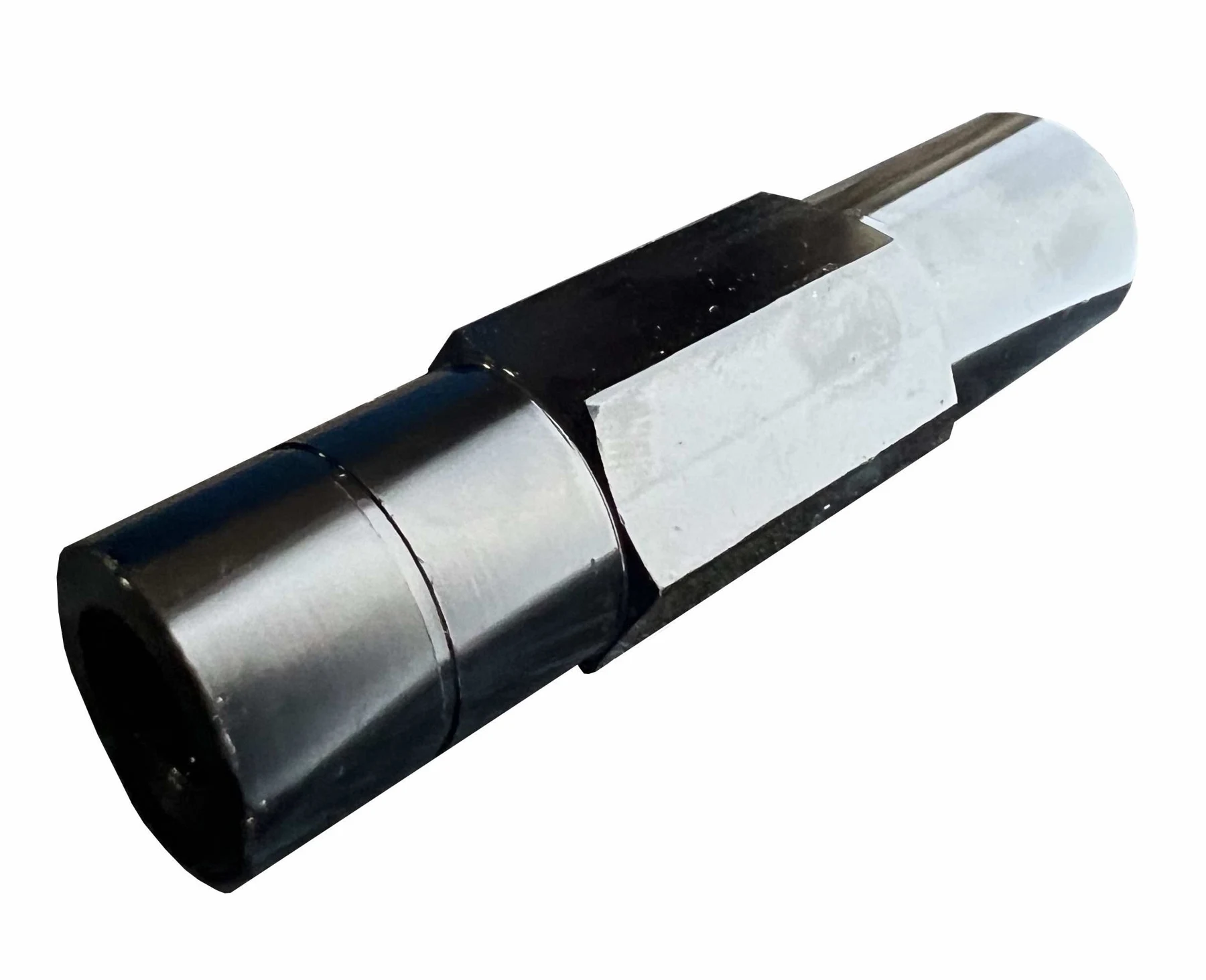

Additional product photo
BSA-2.50-3R-4L additional product photo

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$15.62 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$15.62
2+$9.88
3+$8.33
4+$7.91
5+$7.66
10+$5.54
25+$4.79
50+$3.61

Drawing dimensions

Thread RH/LH1/4-28 LH and 10-32 RH
A0.750
B0.750
C1.000
L2.50
Hex0.438

Lettered dimensions refer to the drawing for this part.

Product information

Material: 6061 aluminum Finish: Black Anodized Application: Commonly used in bump steer adjuster applications, but can also be used for shifting and control linkages and control rods.
