MCPClevis and Yoke Ends · Female
BTC-250C-H

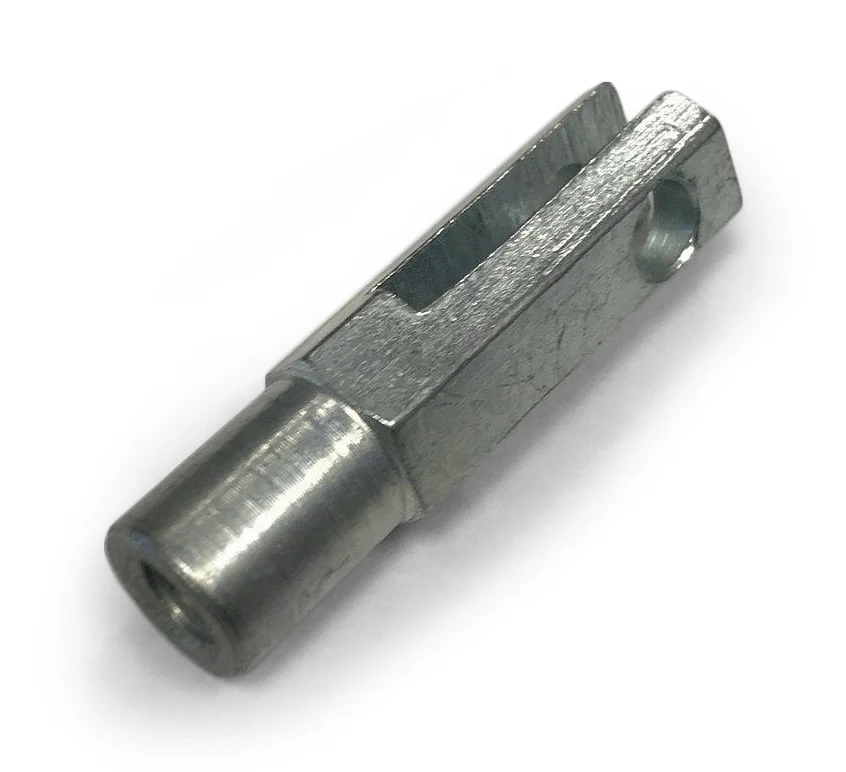

BTC-250C-H, Clevis and Yoke Ends, Female 1/4-20 RH 0.205 Pin Holes Door Linkage Clevis Zinc Clear Plating Turned Construction
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$9.20 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-20 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $9.20 |
| 2+ | $6.70 |
| 3+ | $5.80 |
| 4+ | $4.12 |
| 5+ | $3.87 |
| 10+ | $3.09 |
| 25+ | $2.16 |
| 50+ | $1.89 |
| 100+ | $1.42 |
| 200+ | $1.26 |
| 450+ | $1.17 |
| 1,800+ | $0.84 |

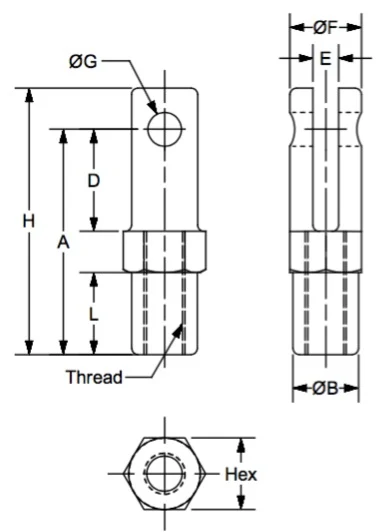

Drawing dimensions
| Threads | 1/4-20 RH |
|---|---|
| A | 1.374 |
| B | 7/16 Hex |
| D | 0.874 |
| E | 0.157 |
| F | 0.433 |
| G | 0.205 |
| H | 1.626 |
| I | 0.402 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: inch clevis ends are typically assembled to the end of a rod, pipe, tube or cable linkage and are then attached via a clevis pin to a mounting point. This special clevis is ideal for door linkage clevises on off-highway equipment cabs.
Attaching Hardware: Inch clevis spring pins, cotter pins, safety clips, etc. are available in volume.
Construction: Similar to DIN 71752.
Finish: plated zinc clear.
Material: low carbon steel.
Turnbuckle Option: consider using MCP's exclusive turnbuckle clevis to eliminate the need for left hand threads and to allow adjustment of linkage lengths after installation.
Cost Savings Tip: cost effective designs should always include the entire rod-nut-yoke assembly, as opposed to purchasing these components separately. Specify the use of clevis spring pins to reduce assembly costs.
