Cable End Fittings, Special · 0.096 Wire Diameter

BWS-096

BWS-096, Cable End Fittings, Special, 0.096 Wire Diameter 0.280 Pin Diameter 0.34 Barrel Length Barrel Pivot Style

Product image
BWS-096 product image

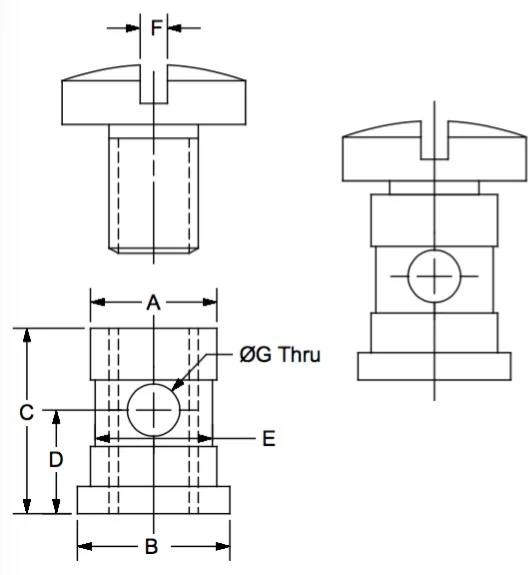

Dimension drawing 1
BWS-096 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$13.70 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$13.70
2+$8.45
3+$7.62
4+$6.62
5+$6.37
10+$5.14
25+$3.90
50+$2.93
100+$2.59
250+$2.34
500+$2.04
1,000+$1.75

Drawing dimensions

A0.232
B0.28
C0.34
D0.19
E0.215
F0.05
G0.096

Lettered dimensions refer to the drawing for this part.

Product information

Application: Wire Stops are typically attached to the end of a push pull cable. Construction: machined from low carbon steel. Product includes the housing, screw and cotter. Plating: plated zinc with a clear chromate finish.
