MCPClevis Spring Pins, Clips and Cotters · Cotter Pins
C2808

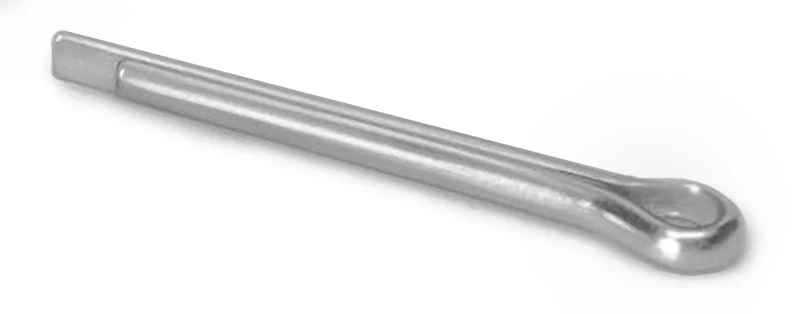

C2808, Clevis Spring Pins, Clips and Cotters, Cotter Pins 1/8 diameter Plated Steel
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.43 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Material | Plated Steel |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.43 |
| 2+ | $2.93 |
| 3+ | $2.10 |
| 4+ | $1.68 |
| 5+ | $1.43 |
| 10+ | $0.93 |
| 25+ | $0.62 |
| 50+ | $0.40 |
| 100+ | $0.32 |
| 200+ | $0.26 |

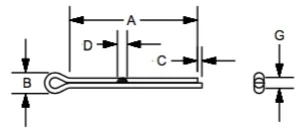

Drawing dimensions
| A | 1.75 |
|---|---|
| B | 0.25 |
| C | 0.06 |
| D | 0.093 / 0.120 |
| G | 0.120 |
Lettered dimensions refer to the drawing for this part.
Product information
Fits a standard 3/4 clevis pins such as Midwest Control Products CP2808 clevis pin.
Zinc Plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
