MCPCable Assemblers Subcomponents · Guide Tube
CBT-30-2 (tube)
CBT-30-2 (tube), Cable Assemblers Subcomponents, Guide Tube 10-32 Nominal Size 2 inches Travel
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$10.21 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Travel | 2 in |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $10.21 |
| 2+ | $7.62 |
| 3+ | $5.23 |
| 4+ | $4.81 |
| 5+ | $4.56 |
| 10+ | $3.71 |
| 20+ | $2.68 |
| 40+ | $2.34 |
| 80+ | $1.75 |
| 120+ | $1.56 |
| 160+ | $1.55 |
| 320+ | $1.45 |
| 640+ | $1.23 |
| 1,600+ | $1.04 |
| 3,200+ | $1.02 |

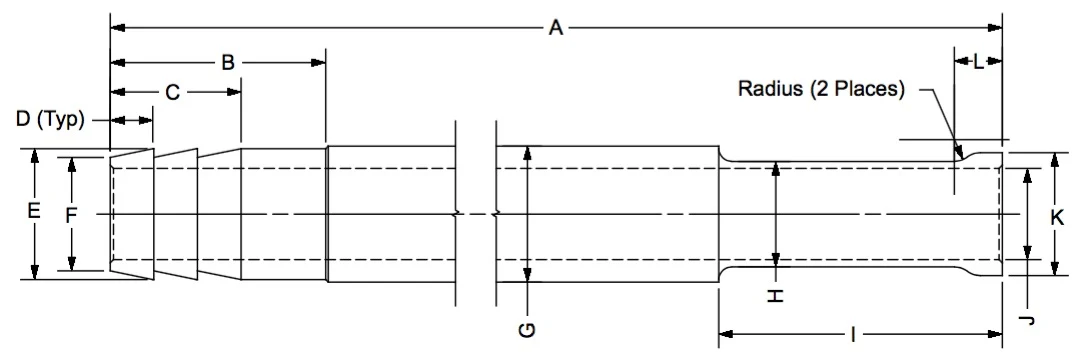

Drawing dimensions
| A | 2.920 |
|---|---|
| B | 0.500 |
| C | 0.300 |
| E | 0.300 |
| F | 0.265 |
| G | 0.312 |
| H | 0.242 |
| I | 0.650 |
| J | 0.209 |
| K | 0.283 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: Brass
Finish: Bright Chrome Plated
Description: Example CBT-30-1
CBT = Series
30 = Cable Size/Series
1 = Travel range
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More cable assemblers subcomponents
Compare specifications and drawings to select the right part.
