MCPBearings, Spherical Plain · 0.250 inch dia Bore
COM-04
COM-04, Bearings, Spherical Plain, 0.250 inch dia Bore 0.6562 inch outer diamater 0.343 inch width Plated Housing, Steel Race

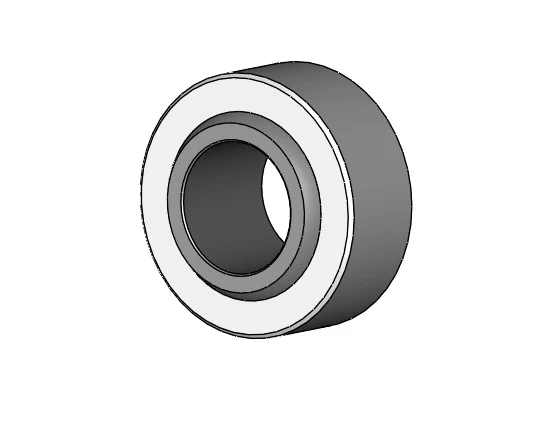

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.80 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Outside diameter | 0.6562 in |
|---|---|
| Width | 0.343 in |
| Housing construction | Plated |
| Race material | Steel |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.80 |
| 2+ | $10.70 |
| 3+ | $9.07 |
| 4+ | $8.65 |
| 5+ | $7.40 |
| 10+ | $6.10 |
| 30+ | $4.07 |
| 50+ | $3.60 |
| 100+ | $3.55 |
| 200+ | $3.23 |
| 400+ | $2.81 |
| 1,000+ | $2.41 |
| 1,400+ | $2.36 |

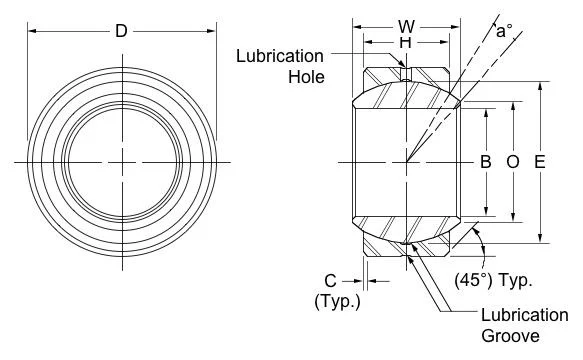

Drawing dimensions
| B | 0.2500 |
|---|---|
| C | 0.022 |
| D | 0.6562 |
| E | 0.500 |
| H | 0.250 |
| O | 0.364 |
| W | 0.343 |
| a° | 13.5° |
Lettered dimensions refer to the drawing for this part.
Product information
Material: plated steel
Bearing Race: steel
Common Names: common names for spherical plain bearings include 'COM Bearings' and 'Uniballs'
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
