MCPBearings, Spherical Plain · 16 mm dia Bore
COMAT-M16
COMAT-M16, Bearings, Spherical Plain, 16 mm dia Bore 38 mm outer diamater 21 mm width Plated Housing, PTFE Race
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.45 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Outside diameter | 38 mm |
|---|---|
| Width | 21 mm |
| Housing construction | Plated |
| Race material | PTFE |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.45 |
| 2+ | $3.95 |
| 3+ | $3.12 |
| 4+ | $2.70 |
| 5+ | $2.45 |
| 10+ | $1.93 |
| 20+ | $1.24 |
| 40+ | $1.03 |
| 80+ | $0.74 |
| 200+ | $0.65 |
| 400+ | $0.49 |
| 1,000+ | $0.43 |
| 1,200+ | $0.41 |
| 1,500+ | $0.39 |

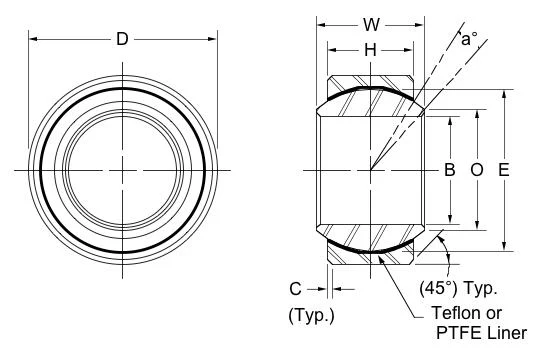

Drawing dimensions
| B | 16 |
|---|---|
| C | 1.0 |
| D | 38 |
| E | 28.58 |
| H | 15.00 |
| O | 19.34 |
| W | 21 |
| a° | 15.0° |
Lettered dimensions refer to the drawing for this part.
Product information
Material: plated steel
Bearing Race: PTFE
Common Names: common names for spherical plain bearings include 'COM Bearings' and 'Uniballs'
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
