MCPBearings, Spherical Plain · 0.625 inch dia Bore
COMB-10
COMB-10, Bearings, Spherical Plain, 0.625 inch dia Bore 1.1875 inch outer diamater 0.625 inch width Plated Housing, Bronze Race
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.08 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Outside diameter | 1.1875 in |
|---|---|
| Width | 0.625 in |
| Housing construction | Plated |
| Race material | Bronze |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.08 |
| 2+ | $12.50 |
| 3+ | $11.66 |
| 4+ | $9.90 |
| 5+ | $9.65 |
| 10+ | $7.40 |
| 25+ | $5.48 |
| 50+ | $4.84 |
| 100+ | $4.52 |
| 250+ | $3.81 |

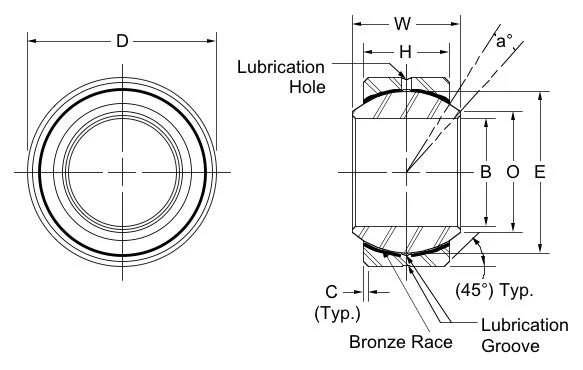

Drawing dimensions
| B | 0.6250 |
|---|---|
| C | 0.032 |
| D | 1.1875 |
| E | 1.000 |
| H | 0.500 |
| O | 0.780 |
| W | 0.625 |
| a° | 8.5° |
Lettered dimensions refer to the drawing for this part.
Product information
Material: plated steel
Bearing Race: bronze
