Bearings, Spherical Plain · 0.750 inch dia Bore

COMB-12

COMB-12, Bearings, Spherical Plain, 0.750 inch dia Bore 1.4375 inch outer diamater 0.750 inch width Plated Housing, Bronze Race

Product image
COMB-12 product image

$26.05 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Outside diameter1.4375 in
Width0.75 in
Housing constructionPlated
Race materialBronze

Values without units follow the drawing.

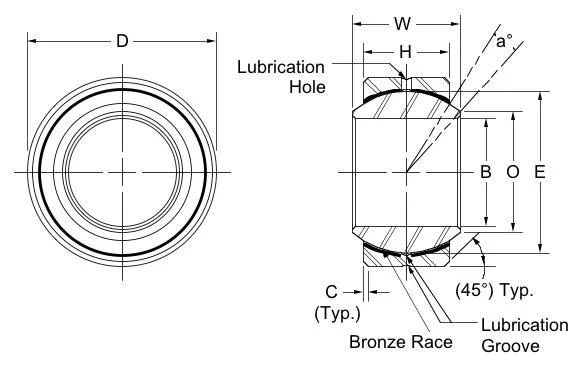

Drawing & dimensions

COMB-12 dimension drawing
B0.7500
C0.044
D1.4375
E1.187
H0.593
O0.920
W0.750
a°9.0°
Item envelope L × W × H (in)1.4375 × 1.4375 × 0.75
Unit weight (lb)0.199

Lettered dimensions refer to the drawing for this part.

Additional photos
Additional product photo
COMB-12 additional product photo

Drawings & photo downloads

Public previews are available above. A free account is required to download original files; sign in once and every file downloads in one click.You're signed in. Files download straight to your computer.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$26.05
2+$20.71
3+$17.60
4+$17.18
5+$15.51
10+$11.60
25+$10.16
50+$9.49
100+$8.02

Product information

Material: plated steel Bearing Race: bronze
