Conduit, 40 Series, High Efficiency, Cut-to-Length, Price per Foot
Conduit, 40 Series, High Efficiency, Cut-to-Length, Price per Foot, Cable Assemblers Subcomponents, Conduit, Bulk 1/4-28 Nominal Size High Efficiency
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$7.70 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 40 Series (1/4”-28) |
|---|---|
| Color | Black |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $7.70 |
| 2+ | $5.20 |
| 3+ | $4.37 |
| 4+ | $3.91 |
| 5+ | $3.66 |
| 10+ | $2.35 |
| 25+ | $1.64 |
| 50+ | $1.36 |
| 100+ | $1.20 |
| 250+ | $0.81 |
| 500+ | $0.80 |
| 1,000+ | $0.73 |
| 2,500+ | $0.54 |
| 5,000+ | $0.54 |

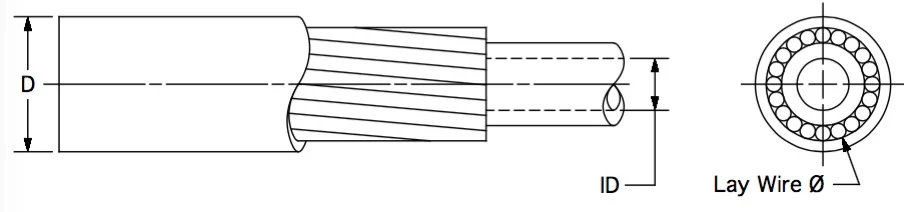

Drawing dimensions
| Nominal | 40 Series (1/4”-28) |
|---|---|
| Color | Black |
| ID | 0.270/0.280 |
| Lay Wire Ø | 0.031 |
| D | 0.375/0.385 |
| Binder Wrap? | no |
Lettered dimensions refer to the drawing for this part.
Product information
Material: high density polyethylene
Construction: high density polyethylene (the ‘liner’) with an outer wrap of 0.035” Ø steel wire (the ‘lay wire’) which is in turn covered with another layer (the ‘cover’) of high density polyethylene. 80 Series (hose for 3/8-24 cables) come with a binder wrap.
Typical Application: push-pull control cables.
Pricing: material is provided cut-to-length. Pricing is PER FOOT. Example: Ordering 100 would mean that we would provide 100’ of conduit to you. For longer orders, coils typically won’t exceed 250’ (if you order 500’, you’ll probably receive two coils of roughly 250’ each).
Video Link: https://www.youtube.com/watch?v=gzXcjlmogDE
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
