MCPCable Assemblers Subcomponents · Core, Bulk
Core, 60 Series, Armor, Cut-to-Length, Price per Foot
Core, 60 Series, Armor, Cut-to-Length, Price per Foot, Cable Assemblers Subcomponents, Core, Bulk 5/16-24 Nominal Size Armor
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$13.72 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 60 Series (5/16-24 & M8 threads) |
|---|---|
| Style | Armor Core |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $13.72 |
| 2+ | $8.46 |
| 3+ | $7.63 |
| 4+ | $6.63 |
| 5+ | $6.38 |
| 10+ | $5.15 |
| 25+ | $3.91 |
| 50+ | $2.93 |
| 100+ | $2.59 |
| 250+ | $2.35 |
| 500+ | $2.05 |
| 1,000+ | $1.75 |
| 2,500+ | $1.72 |
| 5,000+ | $1.72 |

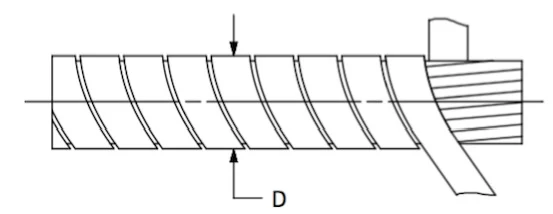

Drawing dimensions
| Nominal | 60 Series (5/16-24 & M8 threads) |
|---|---|
| Style | Armor Core |
| D | 0.184/0.187 |
| Binder Wrap | Yes |
Lettered dimensions refer to the drawing for this part.
Product information
Construction Options:
‘Standard Core’ = plated steel wire
‘Armor Core’ = stainless steel binder wrapped around a stranded wire inner member.
‘High Efficiency” = black nylon cover over a standard wire inner member.
Typical Application: push-pull control cables.
Pricing: material is provided cut-to-length. Pricing is PER FOOT. Example: Ordering 100 would mean that we would provide 100’ of core to you. For longer orders, coils typically won’t exceed 250’ (if you order 500’, you’ll probably receive two coils of roughly 250’ each).
