MCPClevis Spring Pins, Clips and Cotters · Clevis Pins
CP2801

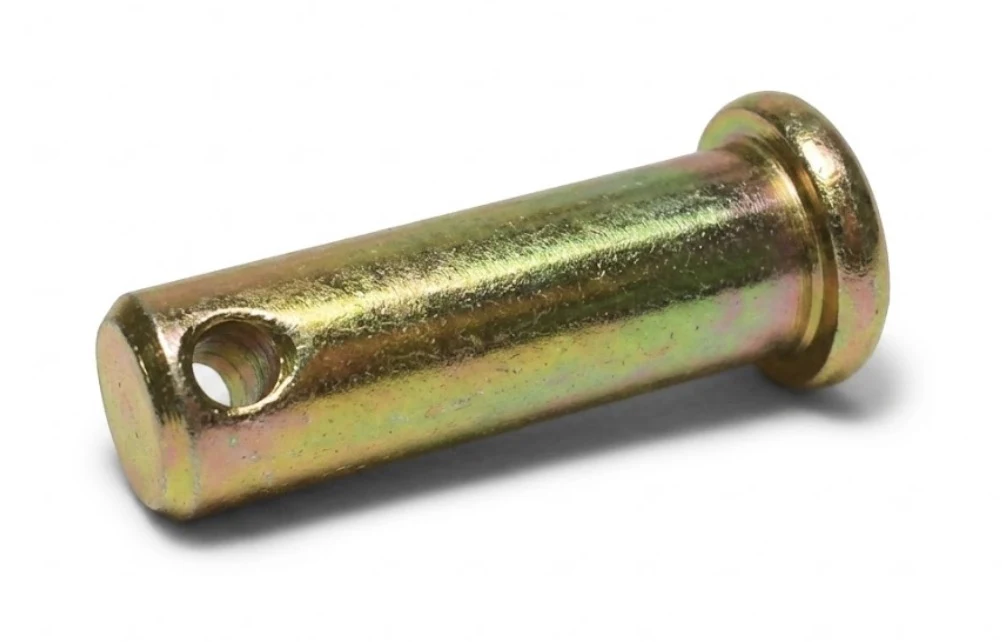

CP2801, Clevis Spring Pins, Clips and Cotters, Clevis Pins 1/4 Cotter Pin Style Zinc Yellow Plating
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.89 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Cotter included | No |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.89 |
| 2+ | $3.39 |
| 3+ | $2.56 |
| 4+ | $2.14 |
| 5+ | $1.89 |
| 10+ | $1.39 |
| 25+ | $0.81 |
| 50+ | $0.65 |
| 100+ | $0.52 |
| 200+ | $0.41 |
| 400+ | $0.30 |
| 800+ | $0.27 |
| 2,000+ | $0.24 |
| 4,000+ | $0.21 |
| 8,000+ | $0.18 |
| 10,000+ | $0.18 |
Drawing dimensions
| Cotter Included | No |
|---|---|
| A | 0.248 |
| B | 0.380 |
| C | 0.100 |
| E | 0.088 |
| G | 0.770 |
| H | 0.692 |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: clevis pins are made from hardened steel
Plating: zinc plated with a yellow chromate treatment.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More clevis spring pins, clips and cotters
Compare specifications and drawings to select the right part.
