MCPClevis Spring Pins, Clips and Cotters · Clevis Pins
CPC2801

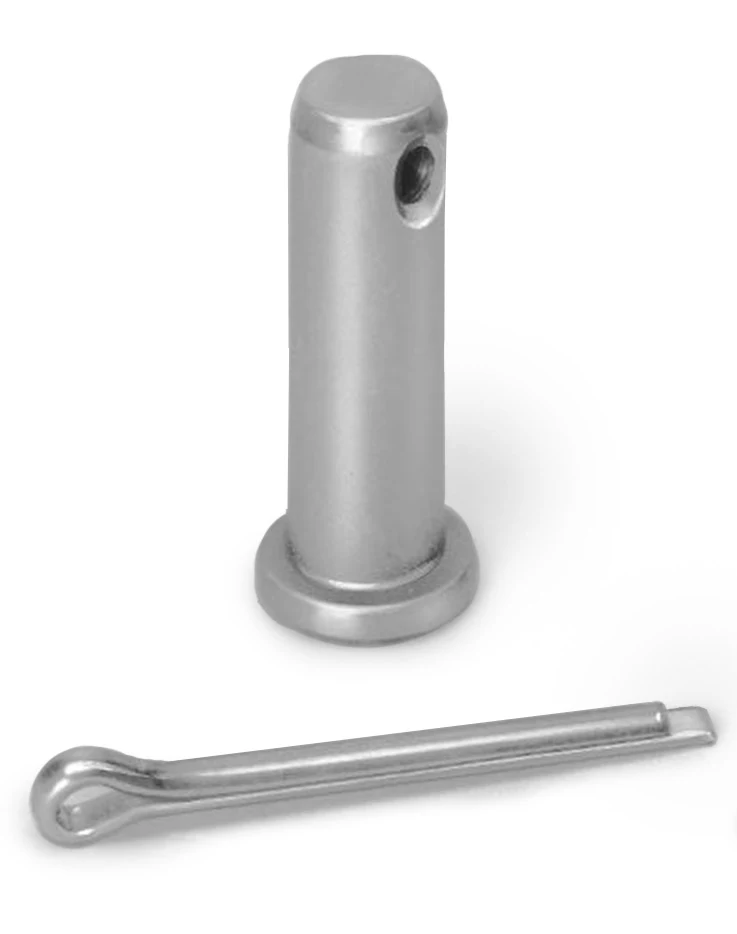

CPC2801, Clevis Spring Pins, Clips and Cotters, Clevis Pins 1/4 Cotter Pin Style Zinc Plated Cotter Pin Included
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$1.12 per piece at 100+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Cotter included | Yes |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 100+ | $1.12 |
| 250+ | $0.76 |
| 500+ | $0.75 |
| 1,000+ | $0.68 |
| 2,500+ | $0.50 |
Drawing dimensions
| Cotter Included | Yes |
|---|---|
| A | 0.248 |
| B | 0.380 |
| C | 0.100 |
| E | 0.088 |
| G | 0.770 |
| H | 0.692 |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: clevis pins are made from hardened steel
Plating: zinc plated
