MCPClevis Spring Pins, Clips and Cotters · Clevis Pins
CPG187

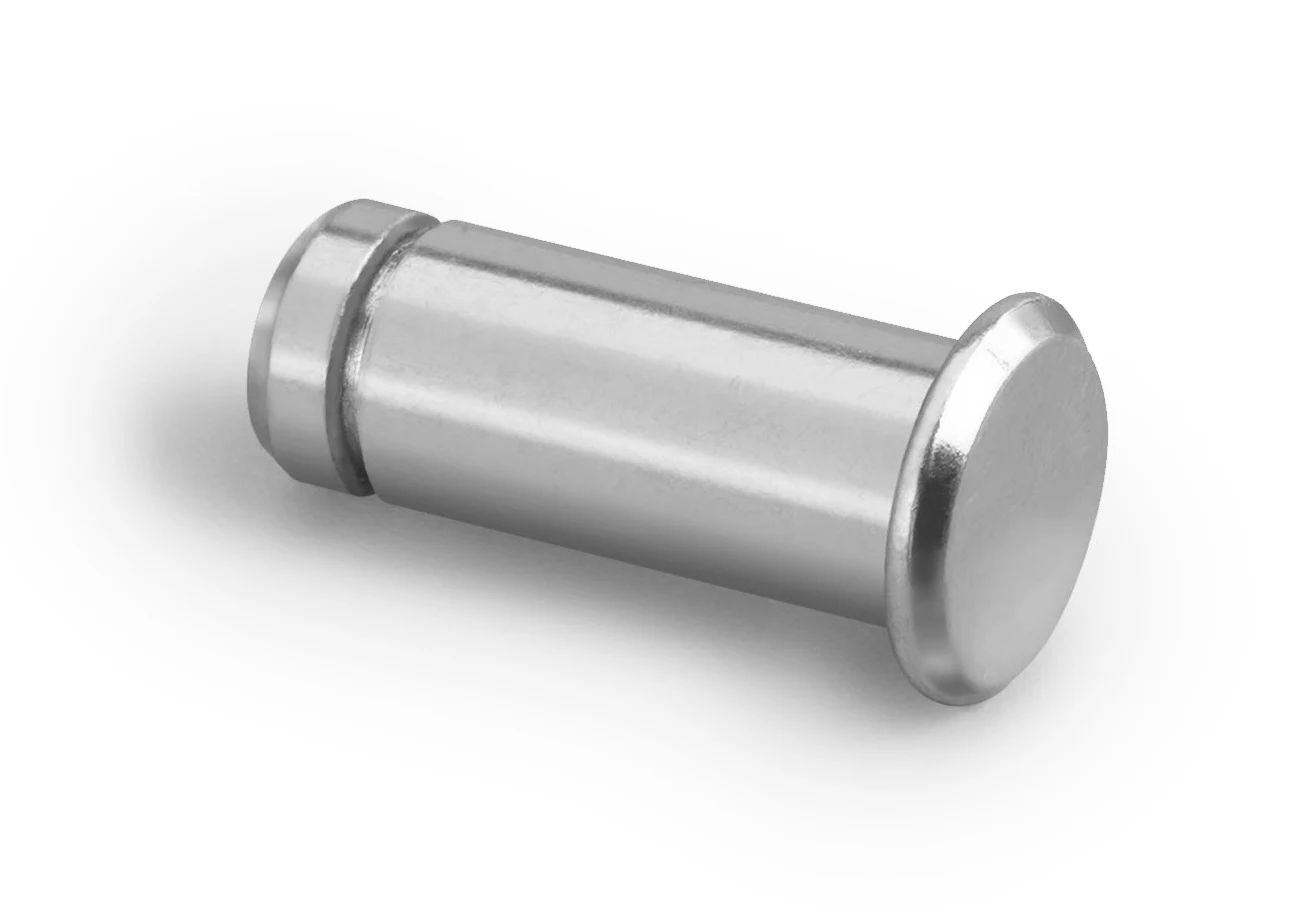

CPG187, Clevis Spring Pins, Clips and Cotters, Clevis Pins 3/16 Grooved Style Zinc Yellow Plating
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.42 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Clip included | No |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.42 |
| 2+ | $2.92 |
| 3+ | $2.09 |
| 4+ | $1.67 |
| 5+ | $1.42 |
| 10+ | $0.92 |
| 25+ | $0.61 |
| 50+ | $0.38 |
| 100+ | $0.31 |
| 200+ | $0.25 |
| 300+ | $0.21 |
| 400+ | $0.19 |
| 500+ | $0.19 |
| 1,000+ | $0.15 |
| 1,400+ | $0.14 |
| 2,000+ | $0.12 |

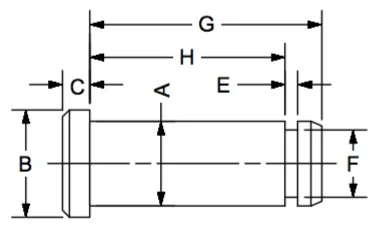

Drawing dimensions
| Clip Included | No |
|---|---|
| A | 0.1875 |
| B | 0.250 |
| C | 0.050 |
| E | 0.020 |
| F | 0.140 |
| G | 0.475 |
| H | 0.380 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Clevis Pins are used in conjunction with safety clips to attach a clevis or yoke end to the mounting point.
Material: hardened steel
