MCPClevis Spring Pins, Clips and Cotters · Clevis Pins
CPG375
CPG375, Clevis Spring Pins, Clips and Cotters, Clevis Pins 3/8 Grooved Style Zinc Yellow Plating
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$9.74 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Clip included | No |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $9.74 |
| 2+ | $7.16 |
| 3+ | $6.33 |
| 4+ | $4.49 |
| 5+ | $4.24 |
| 10+ | $3.42 |
| 25+ | $2.41 |
| 50+ | $2.11 |
| 75+ | $1.61 |
| 100+ | $1.59 |
| 250+ | $1.40 |
| 500+ | $1.27 |
| 1,000+ | $1.12 |

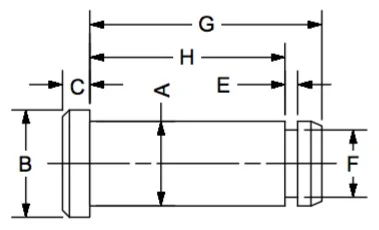

Drawing dimensions
| Clip Included | no |
|---|---|
| A | 0.3750 |
| B | 0.500 |
| C | 0.090 |
| E | 0.037 |
| F | 0.301 |
| G | 0.927 |
| H | 0.755 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Clevis Pins are used in conjunction with safety clips to attach a clevis or yoke end to the mounting point.
Material: hardened steel
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
