MCPClevis Spring Pins, Clips and Cotters · Clevis Pins
CPM30

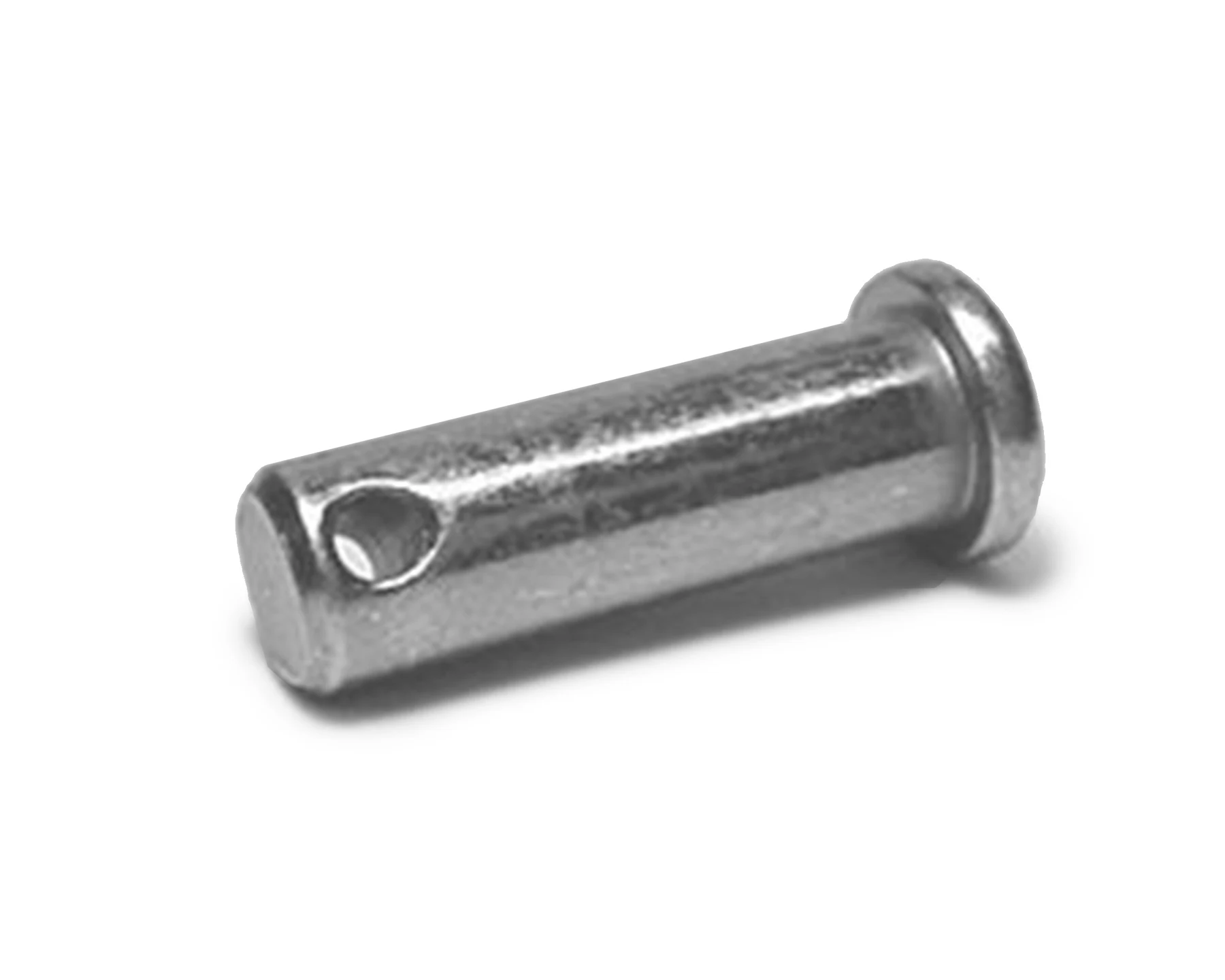

CPM30, Clevis Spring Pins, Clips and Cotters, Clevis Pins 30mm Cotter Pin Style Zinc Clear (Silver) Plating
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$9.19 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Cotter included | No |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $9.19 |
| 2+ | $6.69 |
| 3+ | $5.80 |
| 4+ | $4.13 |
| 5+ | $3.88 |
| 10+ | $3.10 |
| 20+ | $2.51 |
| 30+ | $2.15 |
| 50+ | $1.91 |
Drawing dimensions
| Cotter Included | No |
|---|---|
| A | 30.0 |
| B | 36.0 |
| C | 5.5 |
| E | 6.3 |
| G | 67.0 |
| H | 59.0 |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: clevis pins are made from hardened steel
Plating: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
