MCPClevis Spring Pins, Clips and Cotters · Clevis Pins
CPT500
CPT500, Clevis Spring Pins, Clips and Cotters, Clevis Pins 1/2 Low Profile (Threaded) Style Bright Chrome Plated

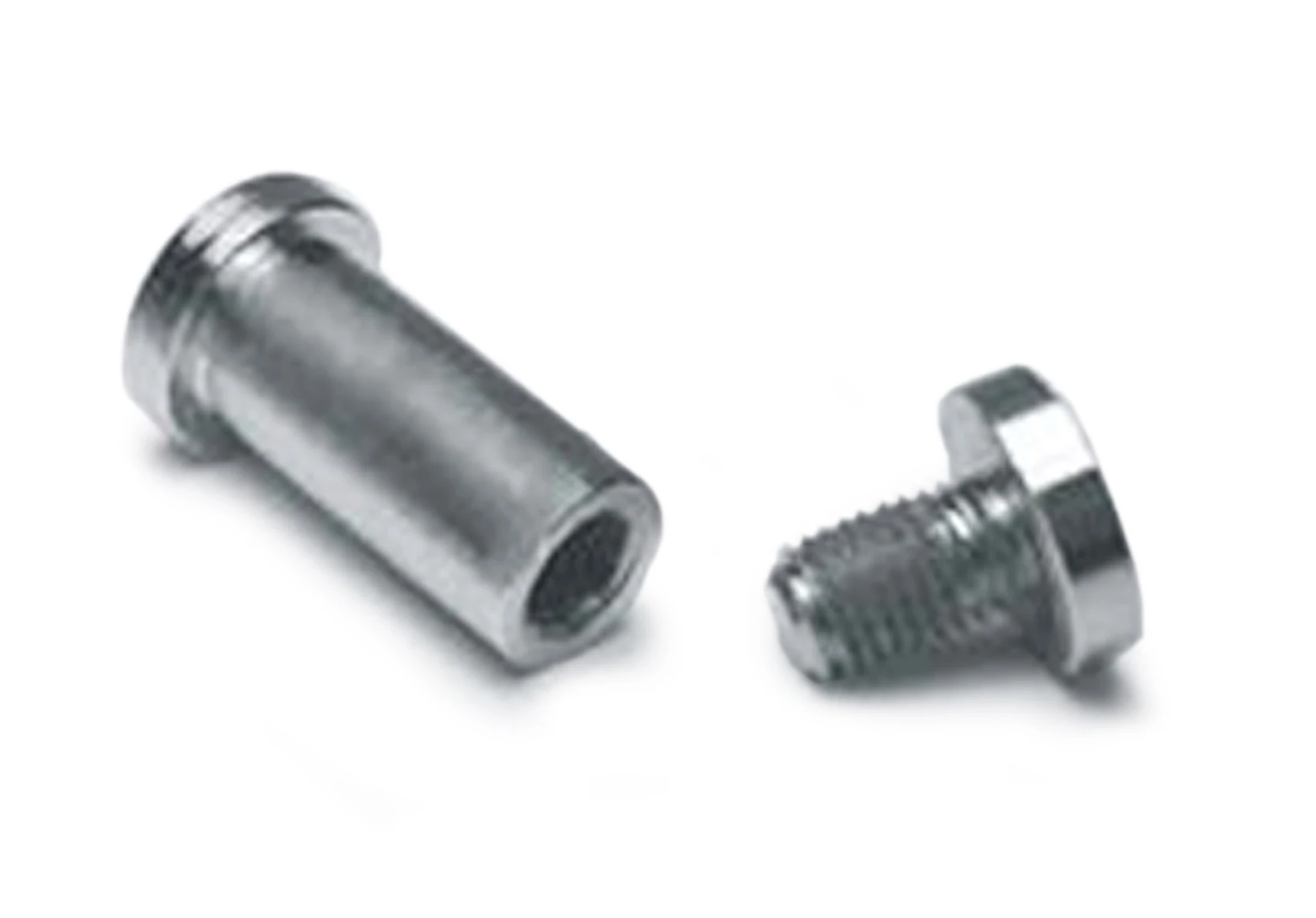

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$9.62 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $9.62 |
| 2+ | $7.04 |
| 3+ | $6.21 |
| 4+ | $4.41 |
| 5+ | $4.16 |
| 10+ | $3.35 |
| 20+ | $2.40 |
| 30+ | $2.32 |
| 40+ | $2.09 |
| 80+ | $1.57 |
| 160+ | $1.38 |
| 240+ | $1.37 |
| 480+ | $1.24 |
| 560+ | $1.24 |

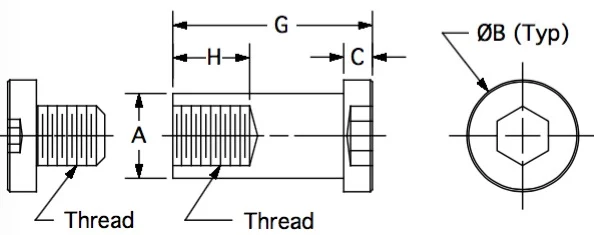

Drawing dimensions
| A | 0.496 |
|---|---|
| B | 0.630 |
| C | 0.160 |
| G | 1.160 |
| H | 0.500 |
Lettered dimensions refer to the drawing for this part.
Product information

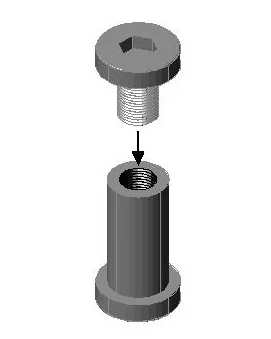

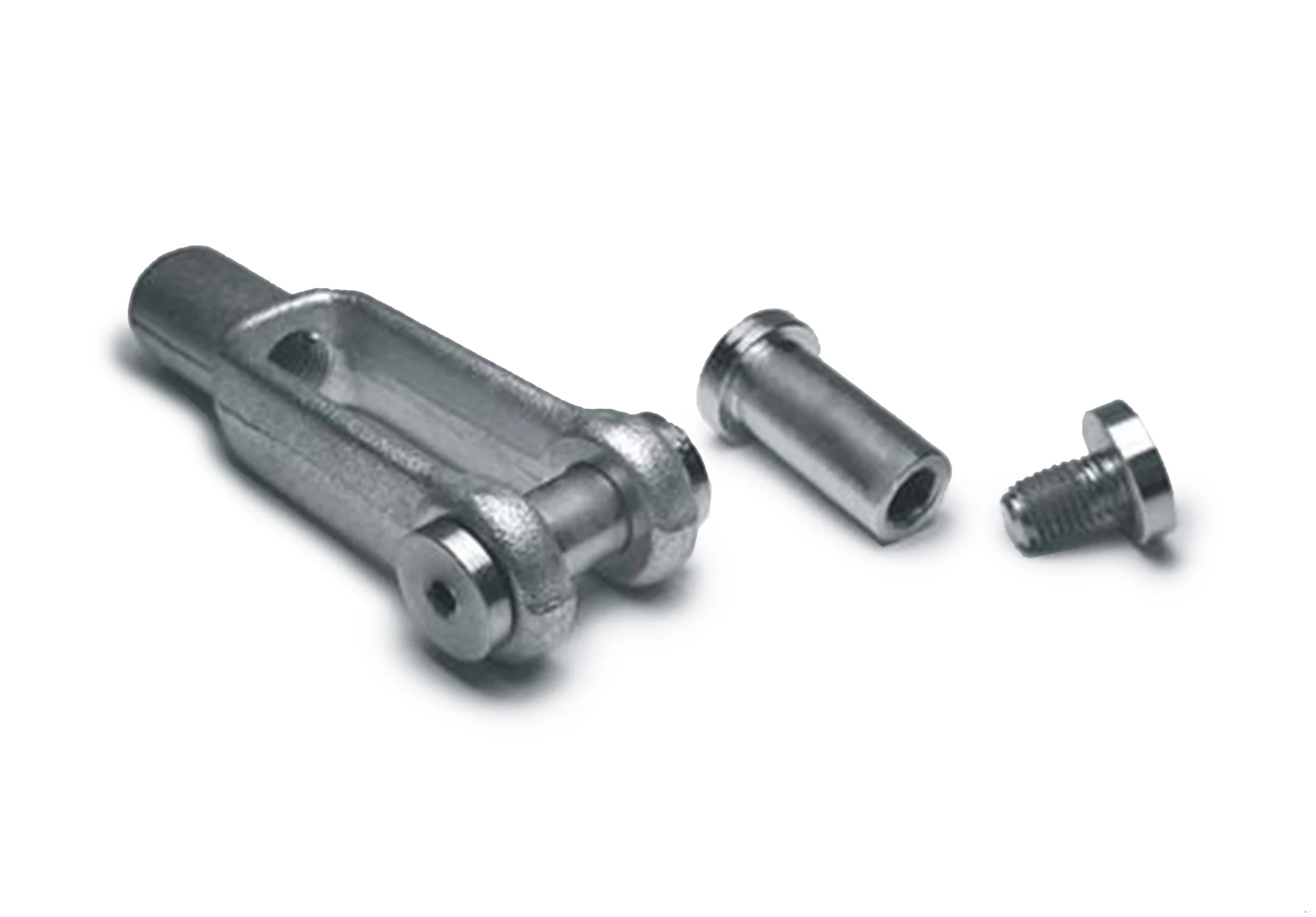

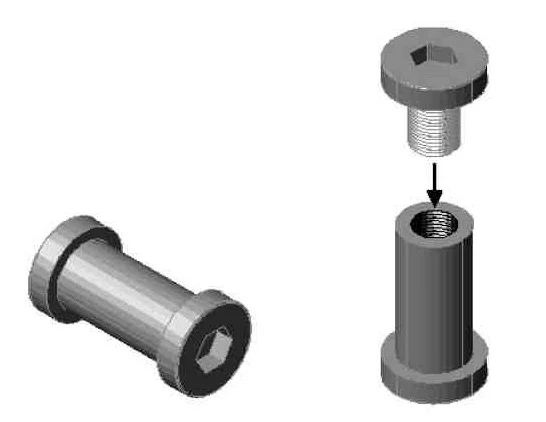

Application: Threaded Clevis Pins are used to attach a clevis or yoke end to the mounting point. Our CPT clevis pins are a low profile clevis pin that does not use a cotter pin for attachment, but rather, threads. Also called Low Profile Clevis Pins.
Special Feature: Nylon patch within threads.
Finish: Bright Chrome Plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
