MCPEye Rod Ends · Male
CRE-10

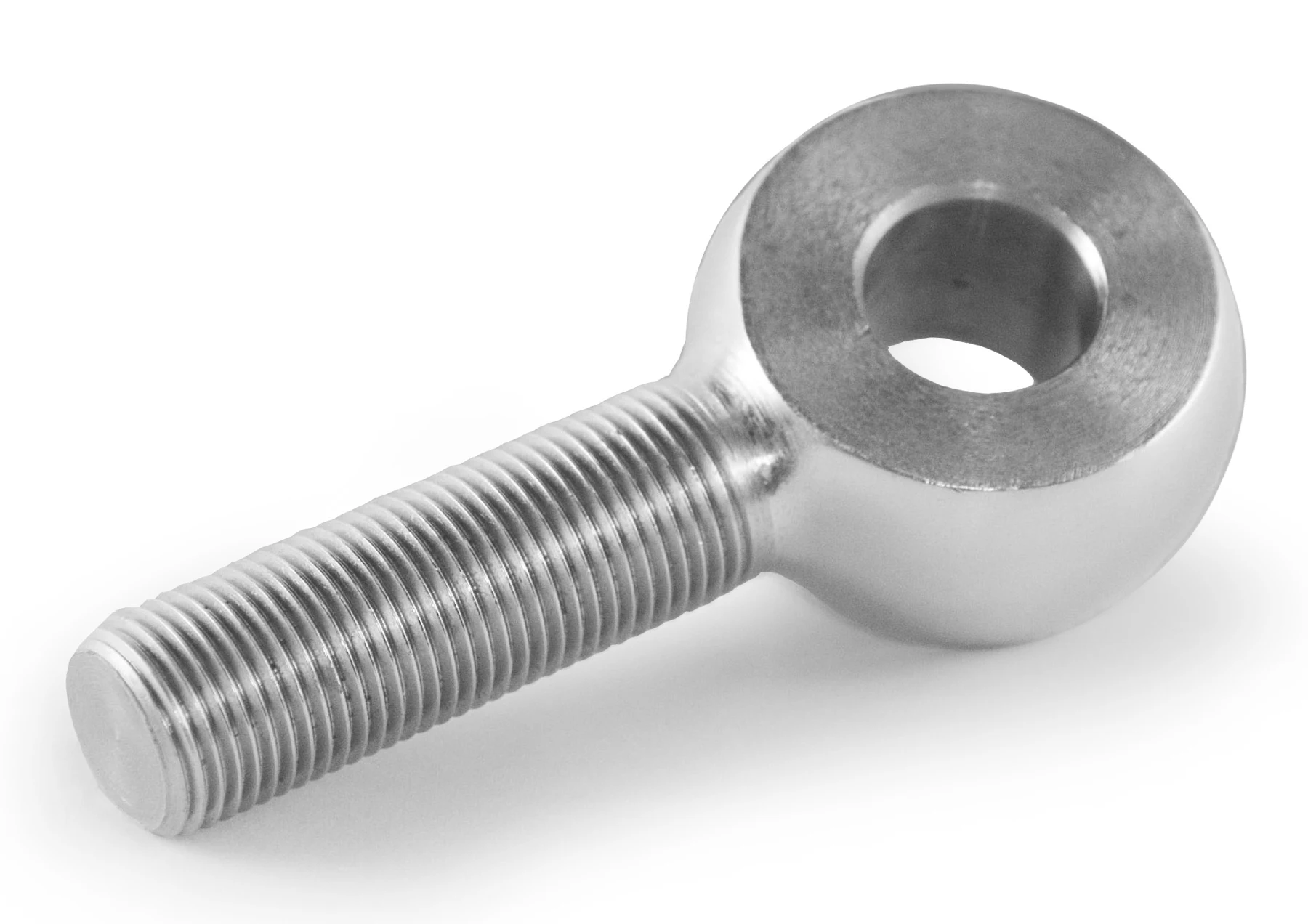

CRE-10, Eye Rod Ends, Male 5/8-18 RH 0.625 Bore Chrome Plated 1018 Steel
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$19.56 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5/8-18 RH |
|---|---|
| Bore diameter | 0.625 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $19.56 |
| 2+ | $12.63 |
| 3+ | $10.81 |
| 4+ | $10.39 |
| 5+ | $8.91 |
| 10+ | $7.42 |
| 25+ | $5.03 |
| 50+ | $4.43 |
| 100+ | $4.38 |
| 200+ | $3.99 |
| 300+ | $3.47 |
| 400+ | $3.47 |

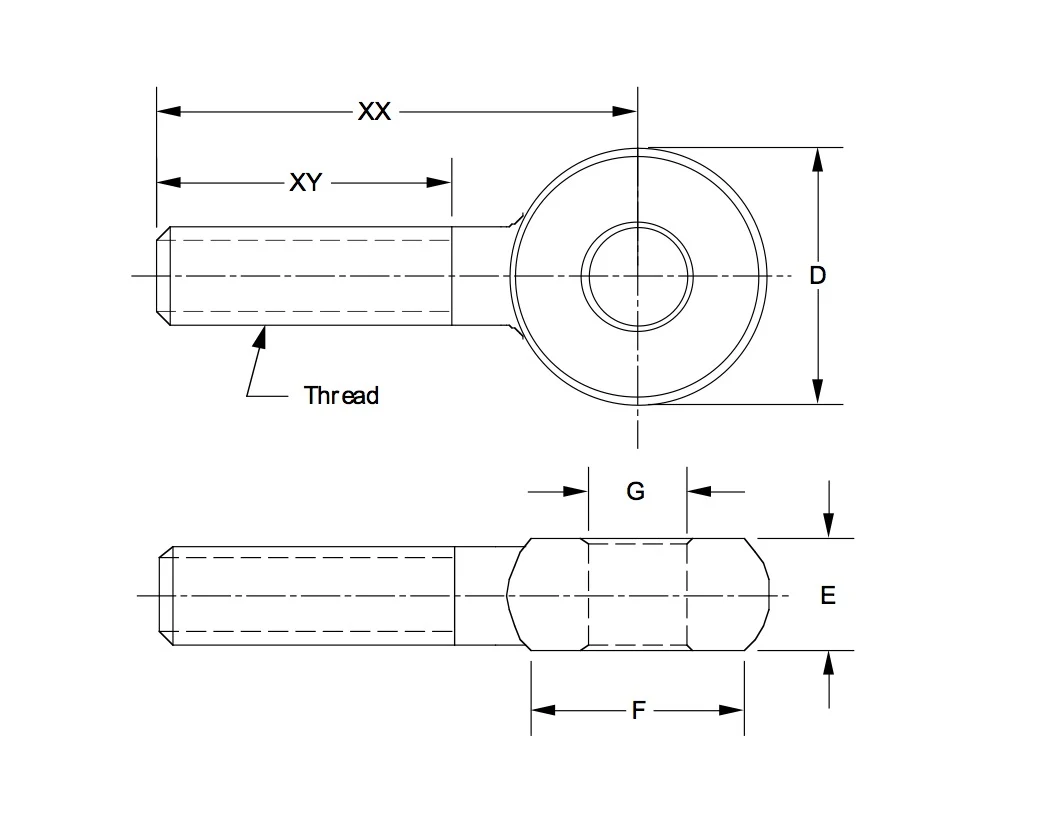

Drawing dimensions
| Threads | 5/8-18 RH |
|---|---|
| D | 1.500 |
| E | 0.750 |
| F | 1.425 |
| G | 0.625 |
| XX | 2.625 |
| XY | 1.625 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: Chrome Plated
Feature: Solid Rod Eye
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
