CRS-30 (rod seal)
CRS-30 (rod seal), Cable Assemblers Subcomponents, Rod Seal 10-32 and M4 Nominal Size
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.19 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 30 Series (10-32 & M4 cables) |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.19 |
| 2+ | $2.69 |
| 3+ | $1.86 |
| 4+ | $1.44 |
| 5+ | $1.19 |
| 10+ | $0.69 |
| 25+ | $0.39 |
| 50+ | $0.29 |
| 100+ | $0.18 |
| 250+ | $0.14 |
| 500+ | $0.10 |
| 2,000+ | $0.06 |
| 5,000+ | $0.06 |
| 15,000+ | $0.05 |

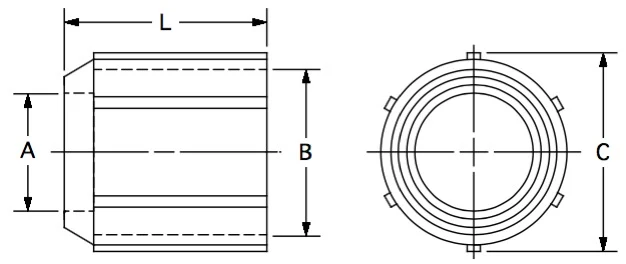

Drawing dimensions
| Nominal | 30 Series (10-32 & M4 cables) |
|---|---|
| A | 0.175 |
| B | 0.290 |
| C | 0.390 |
| L | 0.620 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: polyethylene or vinyl rubber
Color: black
Typical Application: push-pull control cables.
