MCPClevis and Yoke Ends · Female
CTC-125
CTC-125, Clevis and Yoke Ends, Female 5-40 RH 0.128 Pin Holes Zinc Clear Hex Free (ROHS) Turned Construction for Cylinders and Solenoids
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$9.64 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5-40 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $9.64 |
| 2+ | $7.07 |
| 3+ | $6.24 |
| 4+ | $4.42 |
| 5+ | $4.17 |
| 10+ | $3.36 |
| 25+ | $2.37 |
| 50+ | $2.07 |
| 100+ | $1.56 |
| 250+ | $1.37 |
| 500+ | $1.25 |
| 1,000+ | $1.09 |

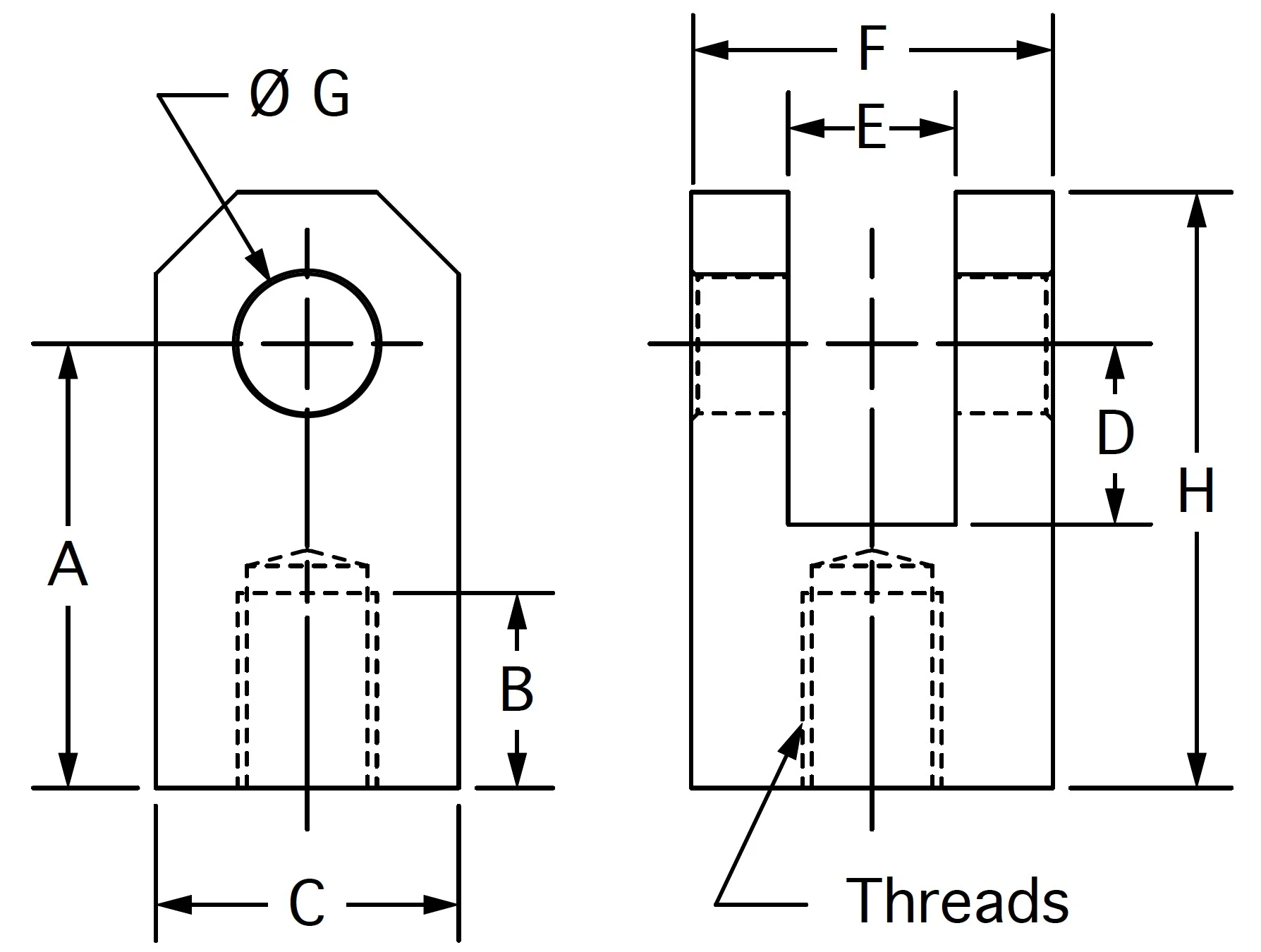

Drawing dimensions
| Threads | 5-40 RH |
|---|---|
| A | 0.437 |
| B | Thru |
| C | 0.250 |
| D | 0.250 |
| E | 0.130 |
| F | .25 |
| G | 0.128 |
| H | 0.562 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: CTC Clevis ends are typically assembled to the end of a cylinder arm.
Material: low carbon steel
Finish: plated zinc clear
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
